External turning 1010 90°

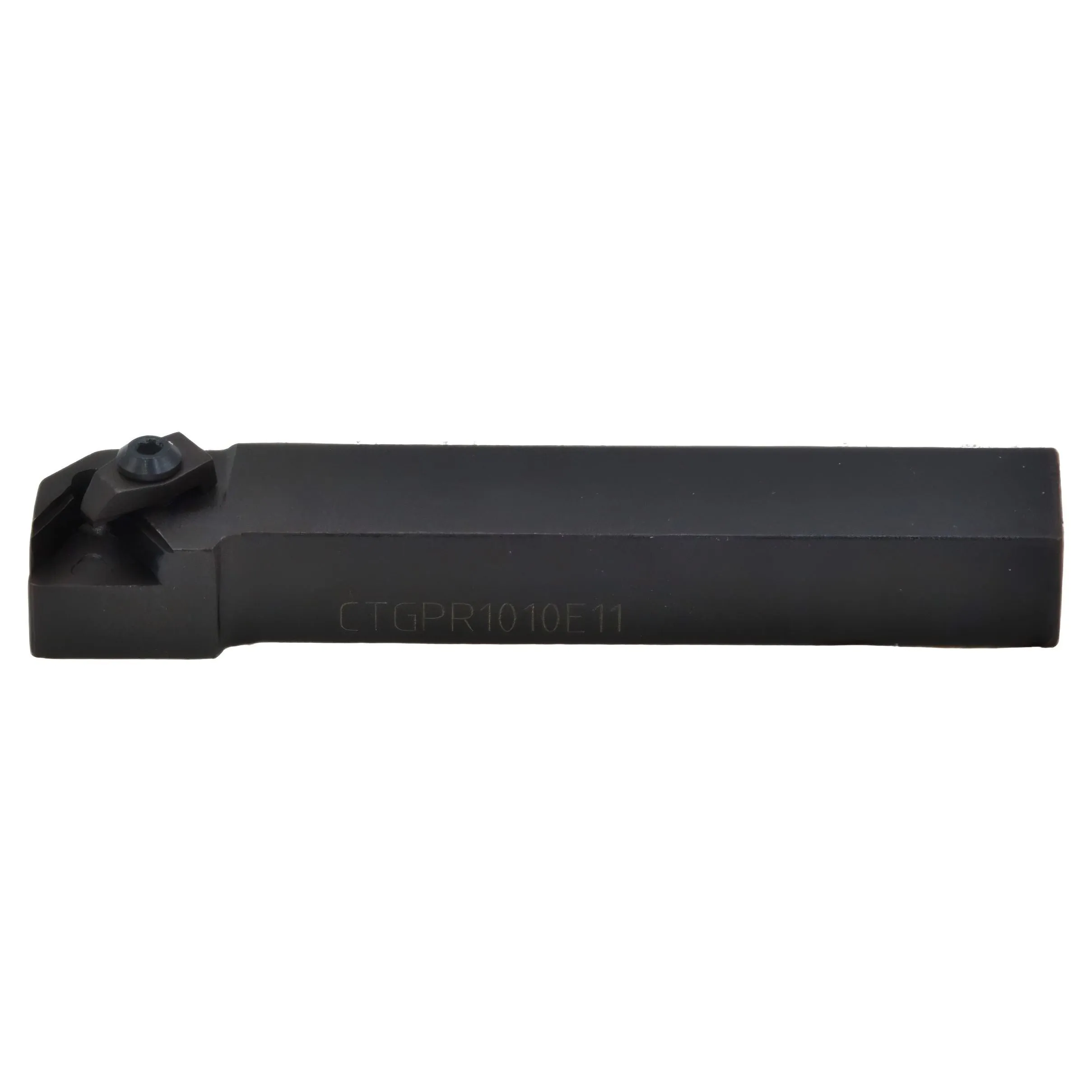

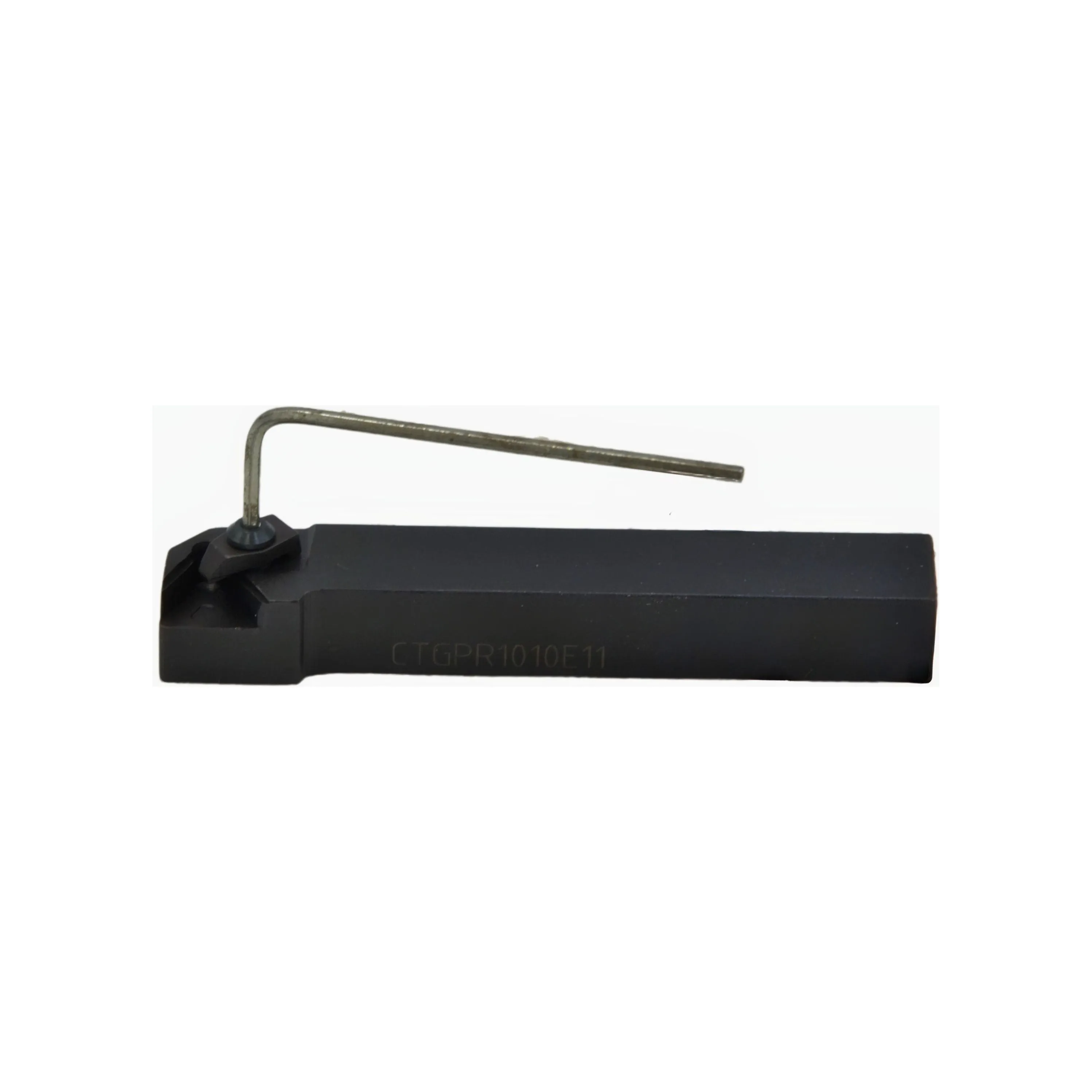

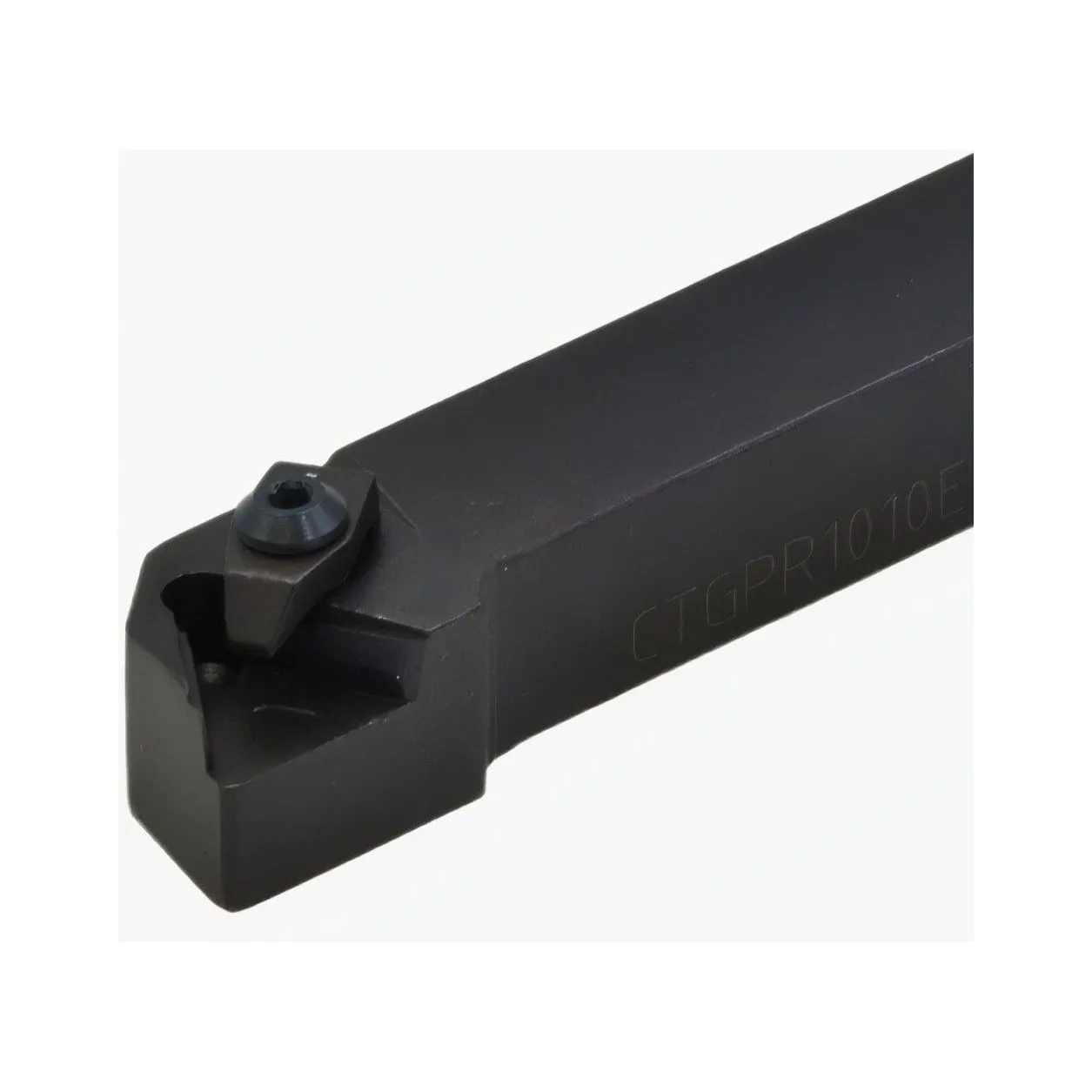

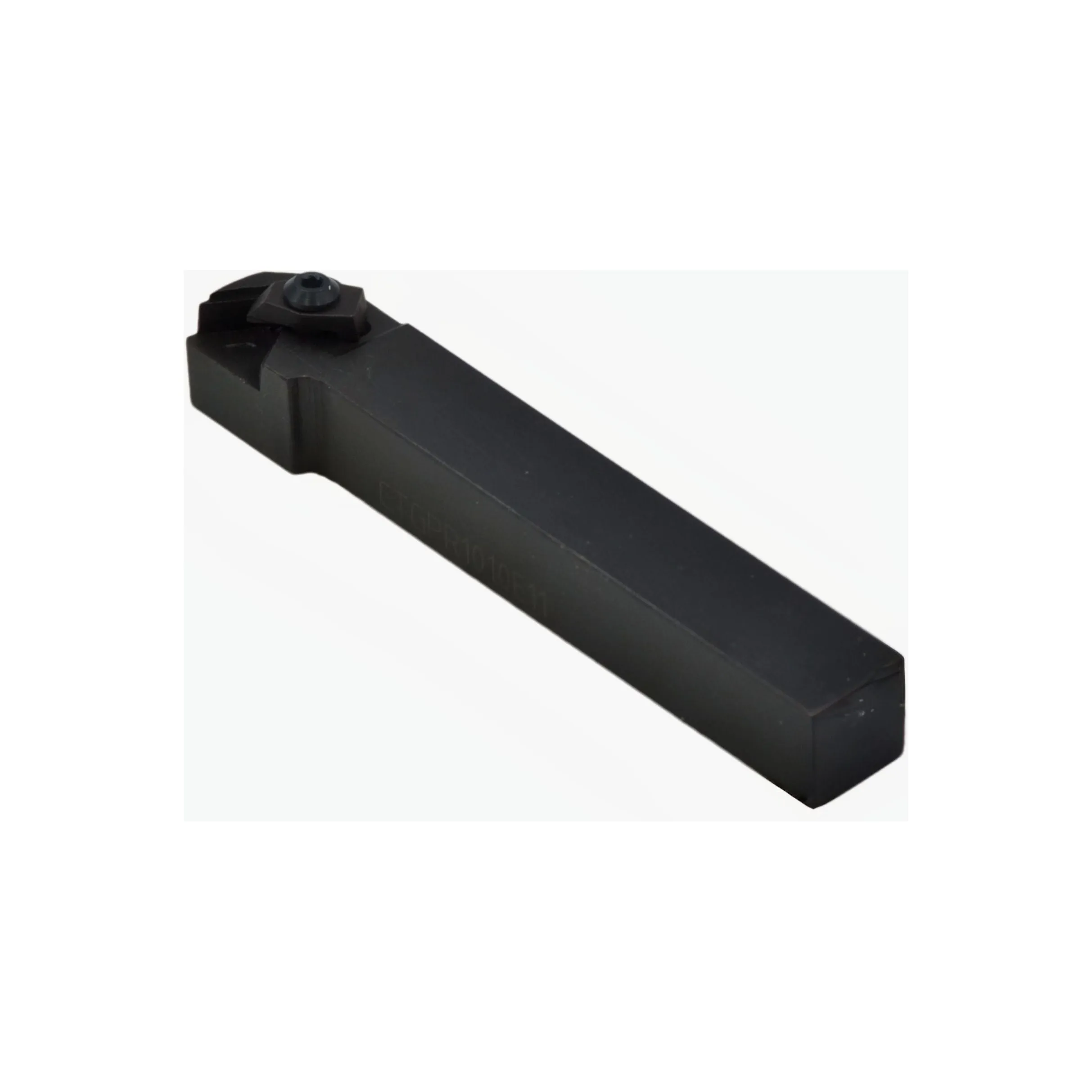

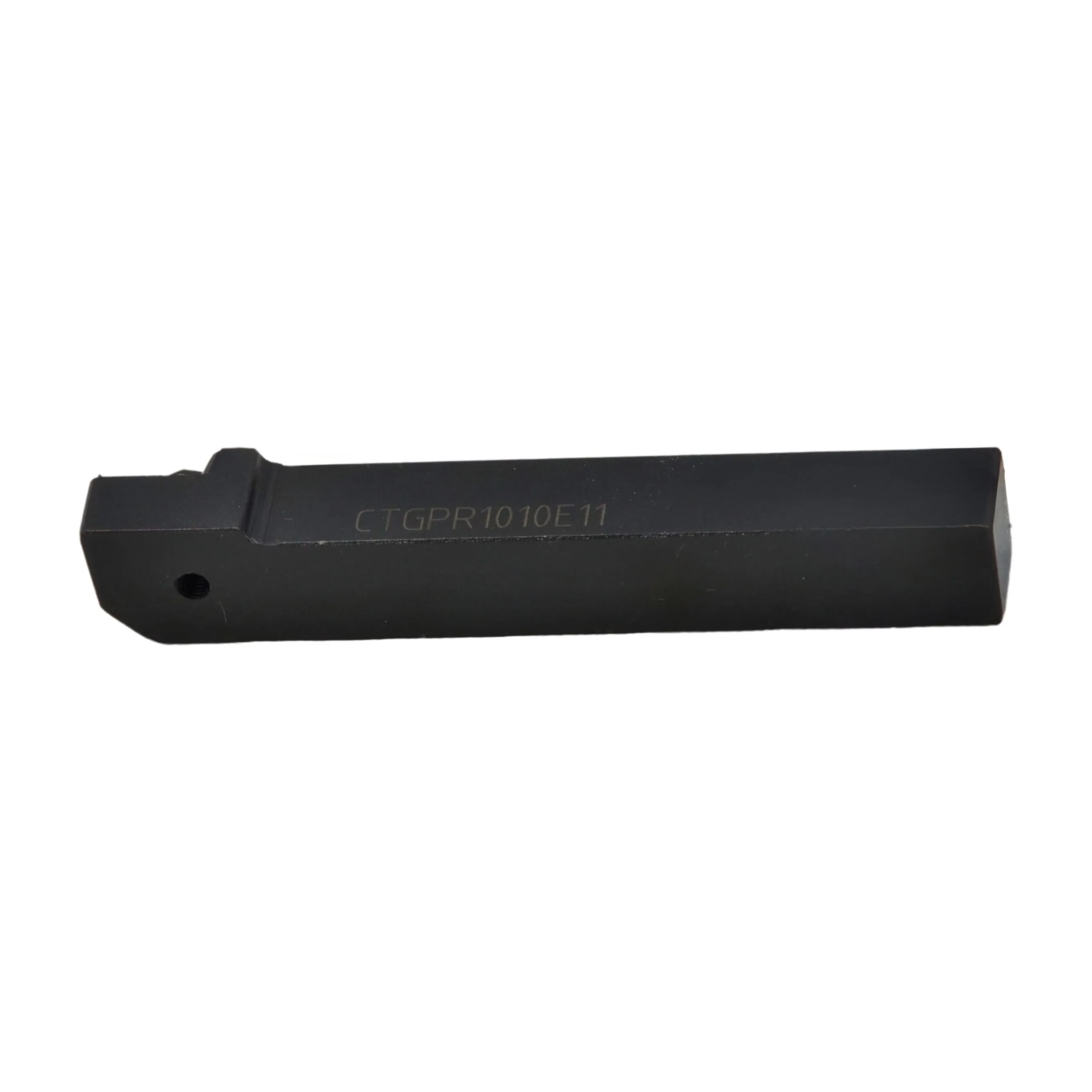

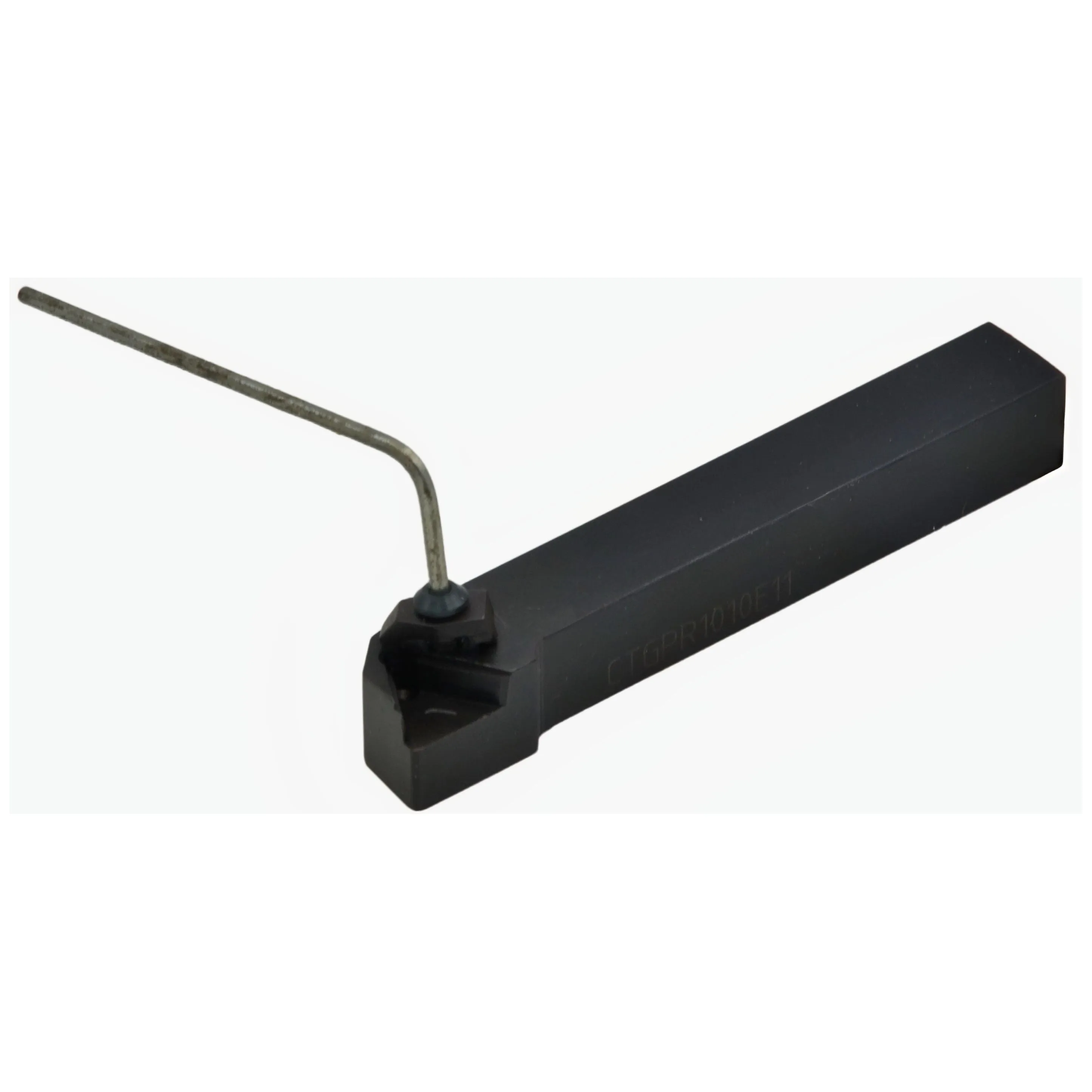

Top clamp multipurpose toolholder equipped with triangular positive double-sided insert (angle 60º).
ISO standard tools perform most of the metalworking industry's machining. The applications range from finishing to roughing.
| Quality | Designation |
|---|---|
| Measurement System | Metric |
| Clamping method of insert | Top Clamp |
| Category | External Turning |
| Connection Style | Square Shank |
| Back End Size | 10x10 |
| Holder Style | 90° |
| Insert Shape | T-Triangular (60°) |
| Clearance angle | Positive (11°) |
| Hand | Right |
| Coolant | No |
| Insert Code | TP |

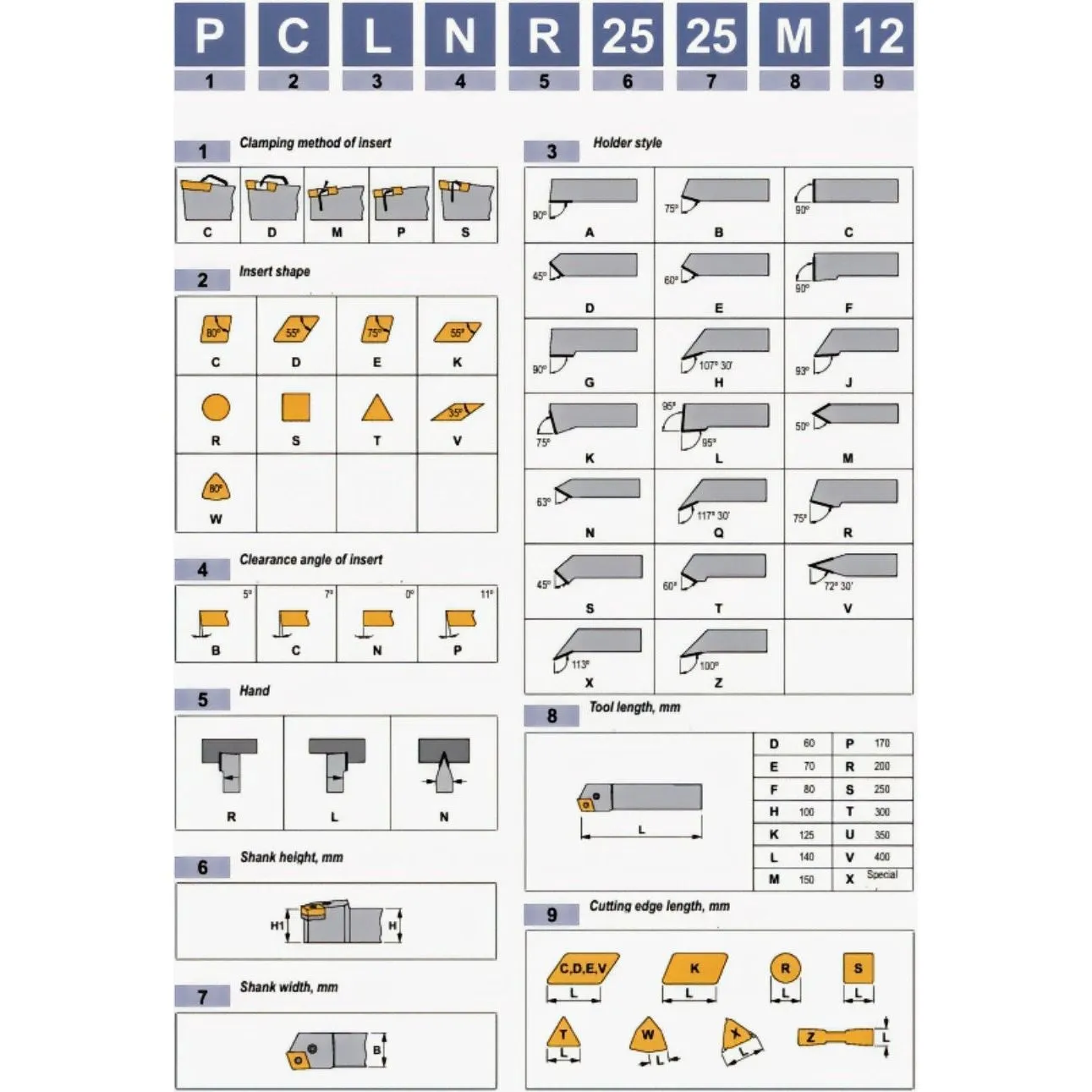

Using the chart within images, the relevant parts in the code are the 2nd and 4th letters. eg = CTGPR1010E11 would refer to a TP insert style.
To know what size the insert should be it refers to the last two digits in the code - CTGPR1010E11 meaning a TP-11 insert. The result being any insert starting with a TP will fit on the respective holder.
