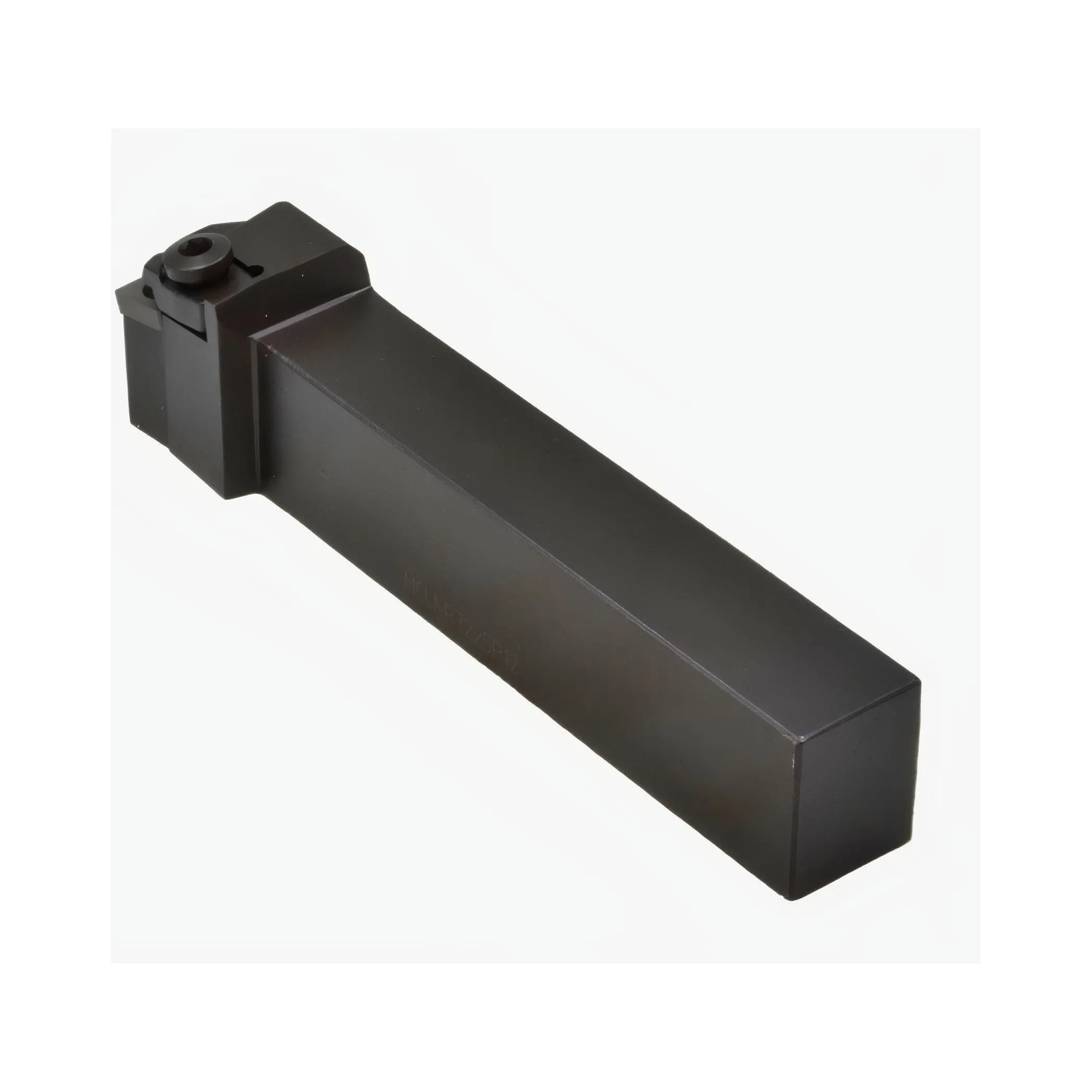

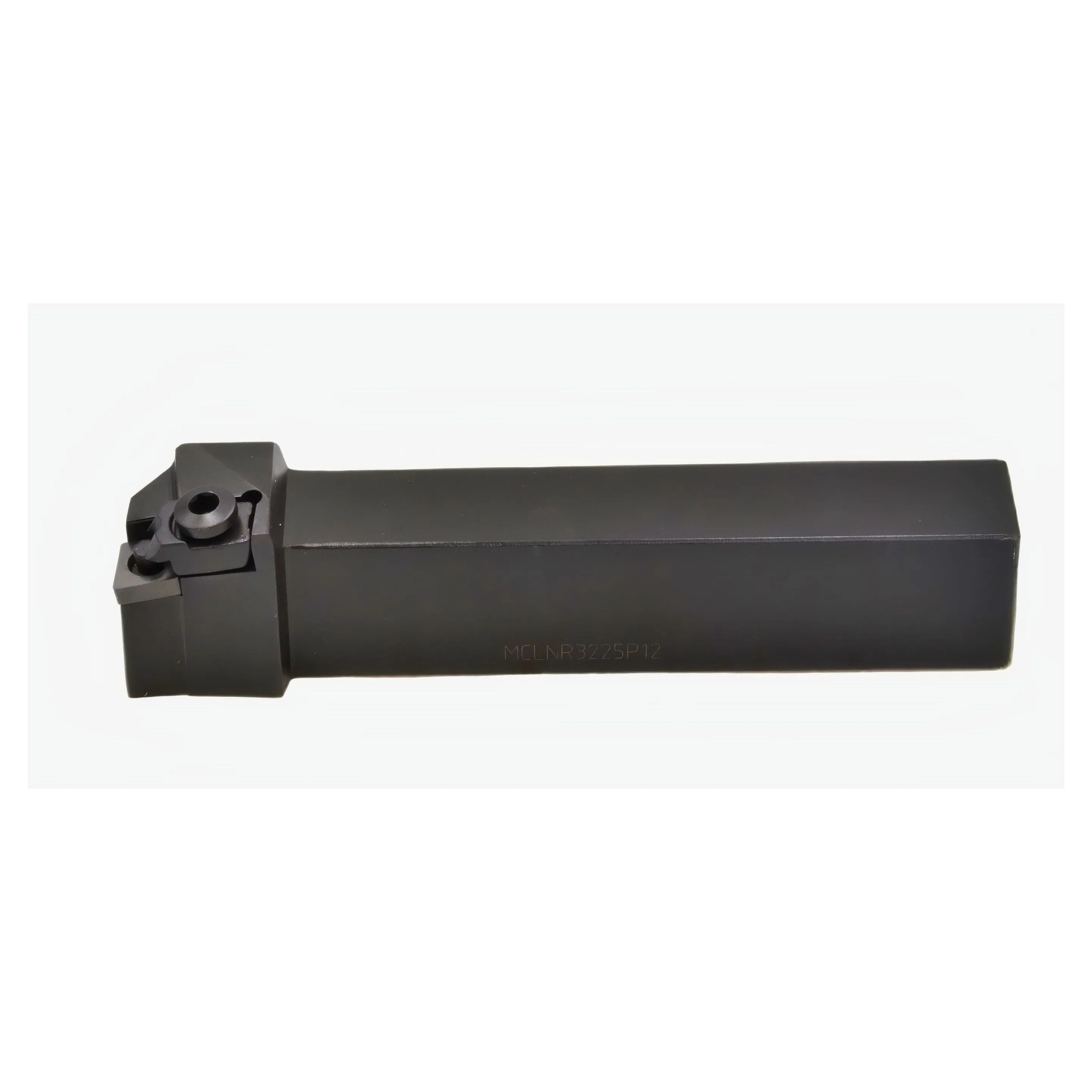

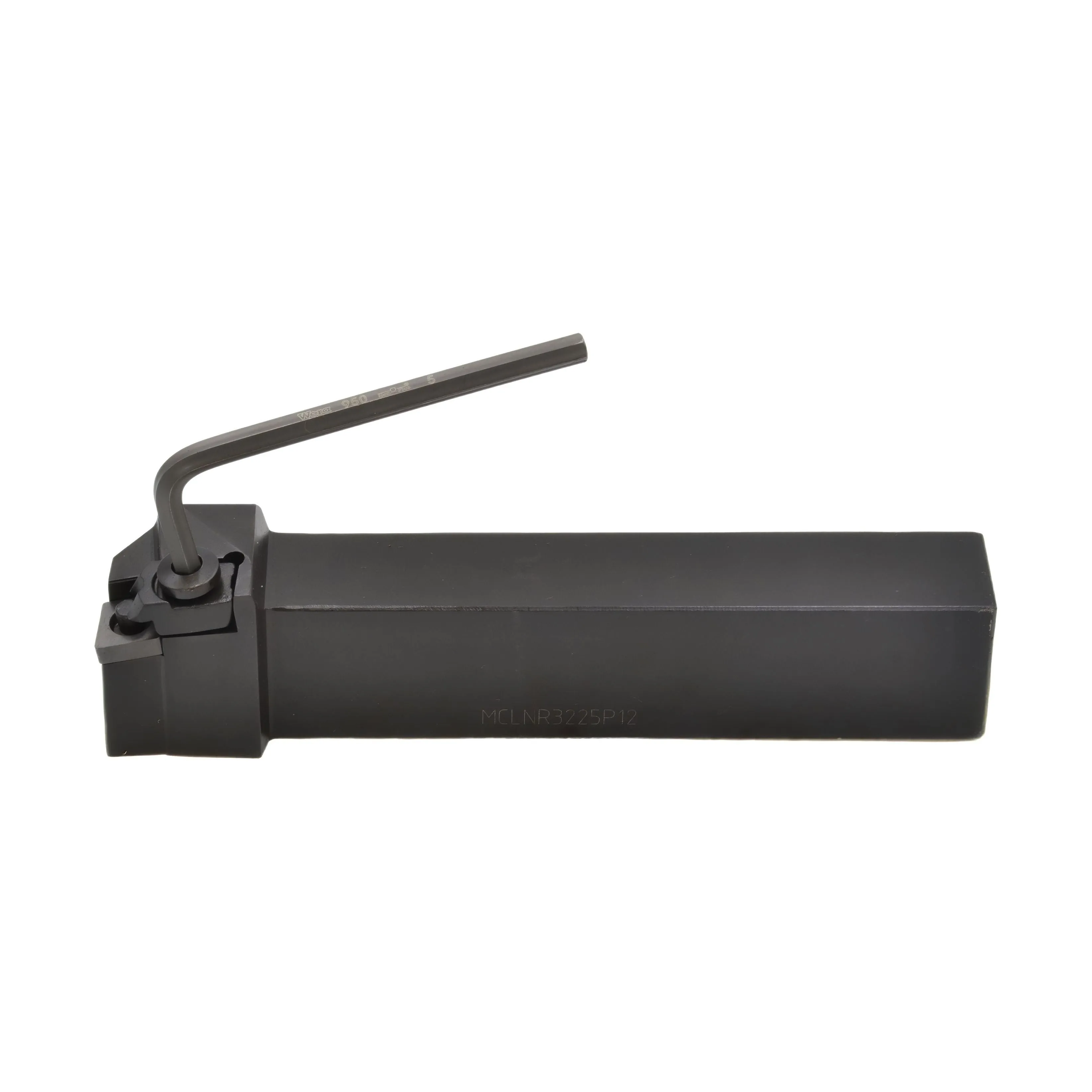

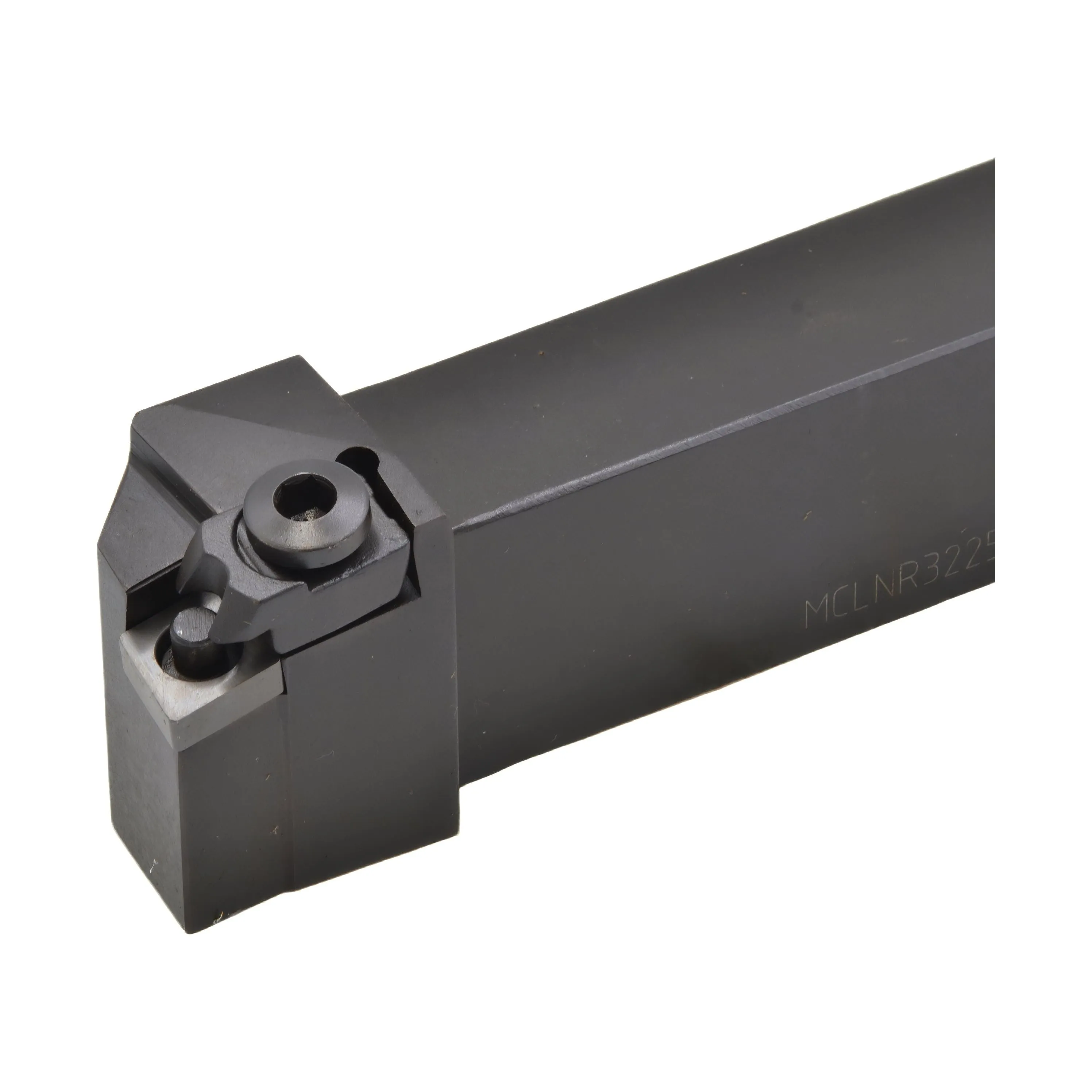

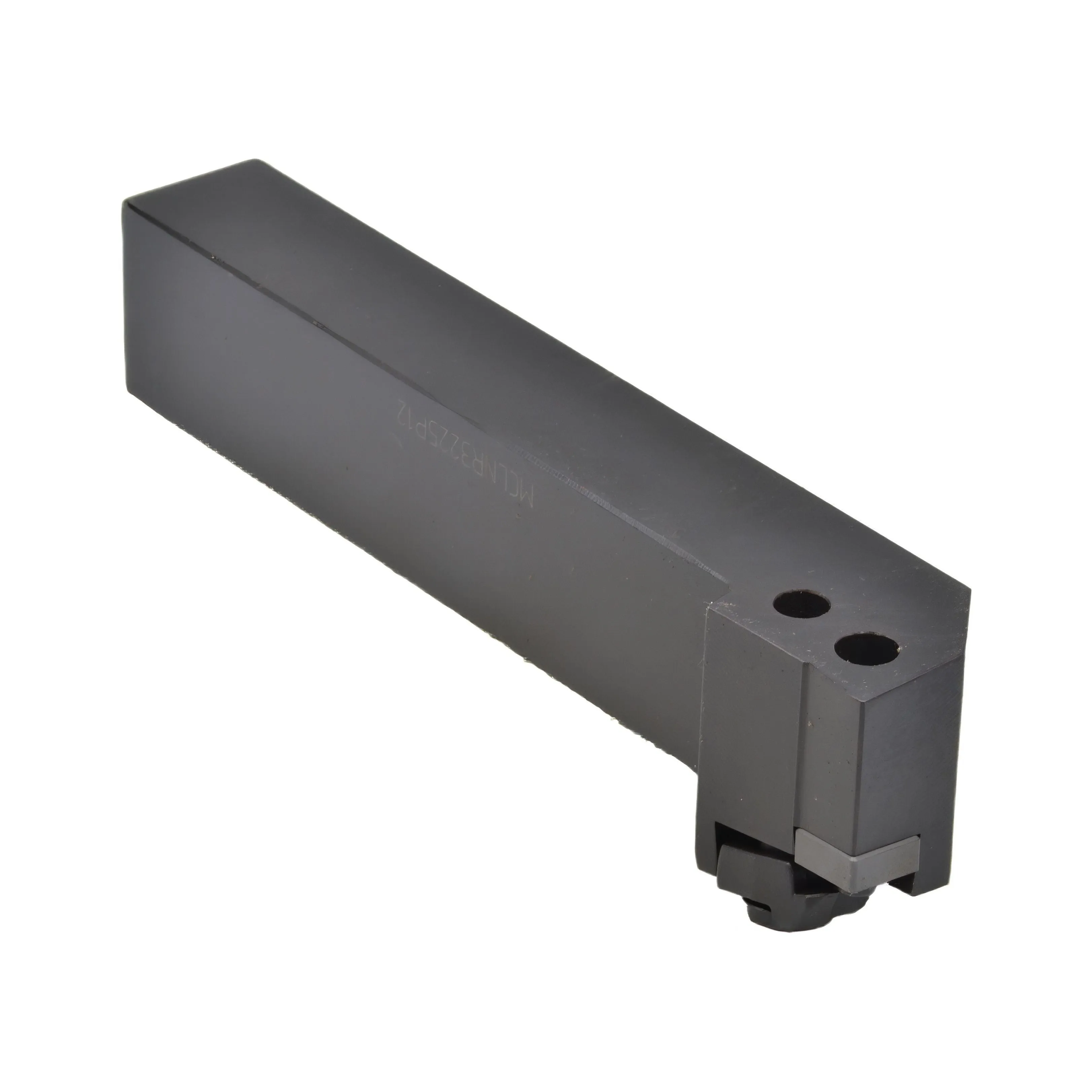

External turning 3225 95°

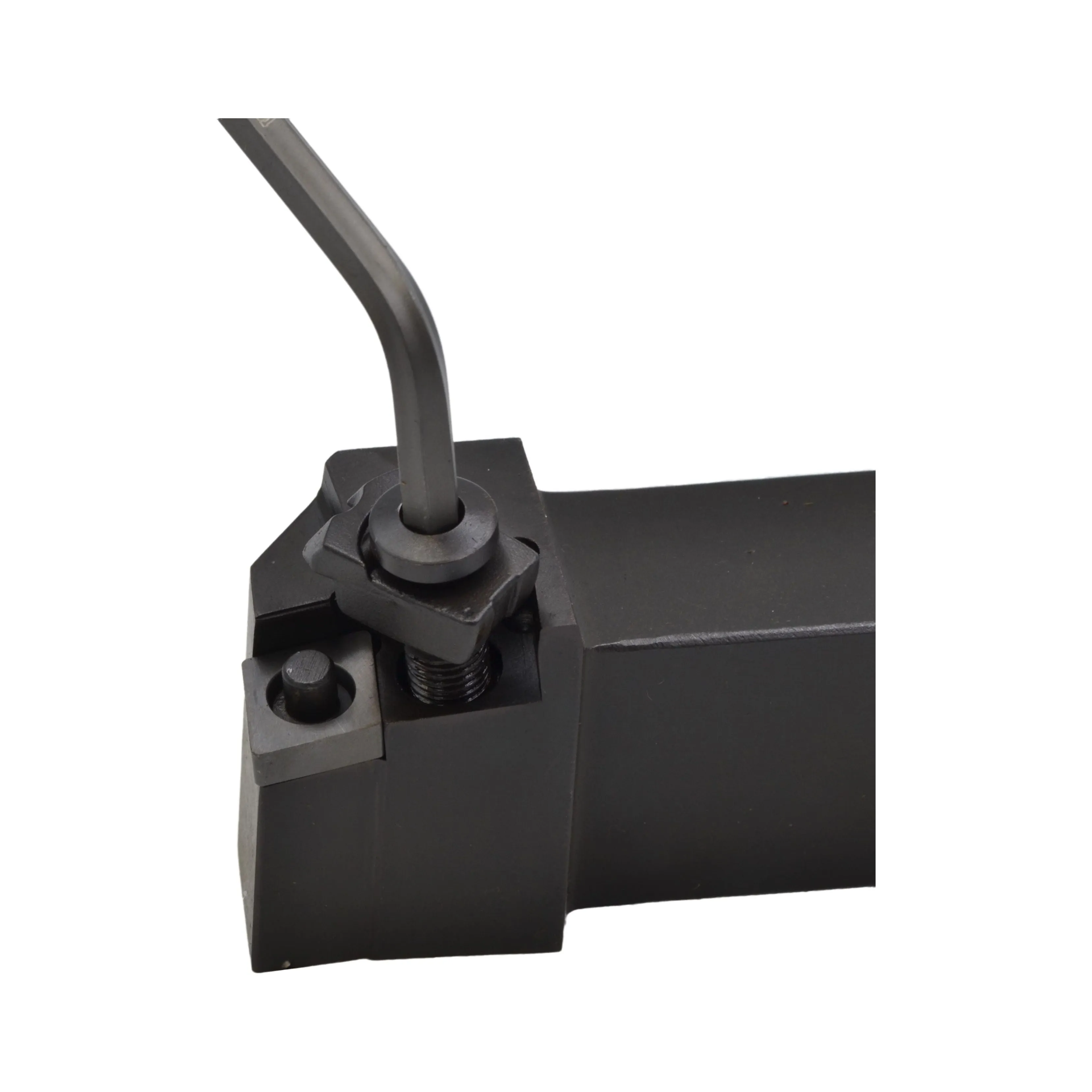

Wedge clamp or double lock multipurpose toolholder equipped with rhombic negative double-sided insert (angle 80º).
ISO standard tools perform most of the metalworking industry's machining. The applications range from finishing to roughing.
| Quality | Designation |
|---|---|
| Measurement System | Metric |
| Clamping method of insert | Wedge clamp or double lock |
| Category | External Turning |
| Connection Style | Square Shank |
| Back End Size | 32x25 |
| Holder Style | 95° |
| Insert Shape | C-Rhombic 80° |
| Clearance angle | Negative |
| Hand | Right |
| Coolant | No |
| Insert Code | CN |

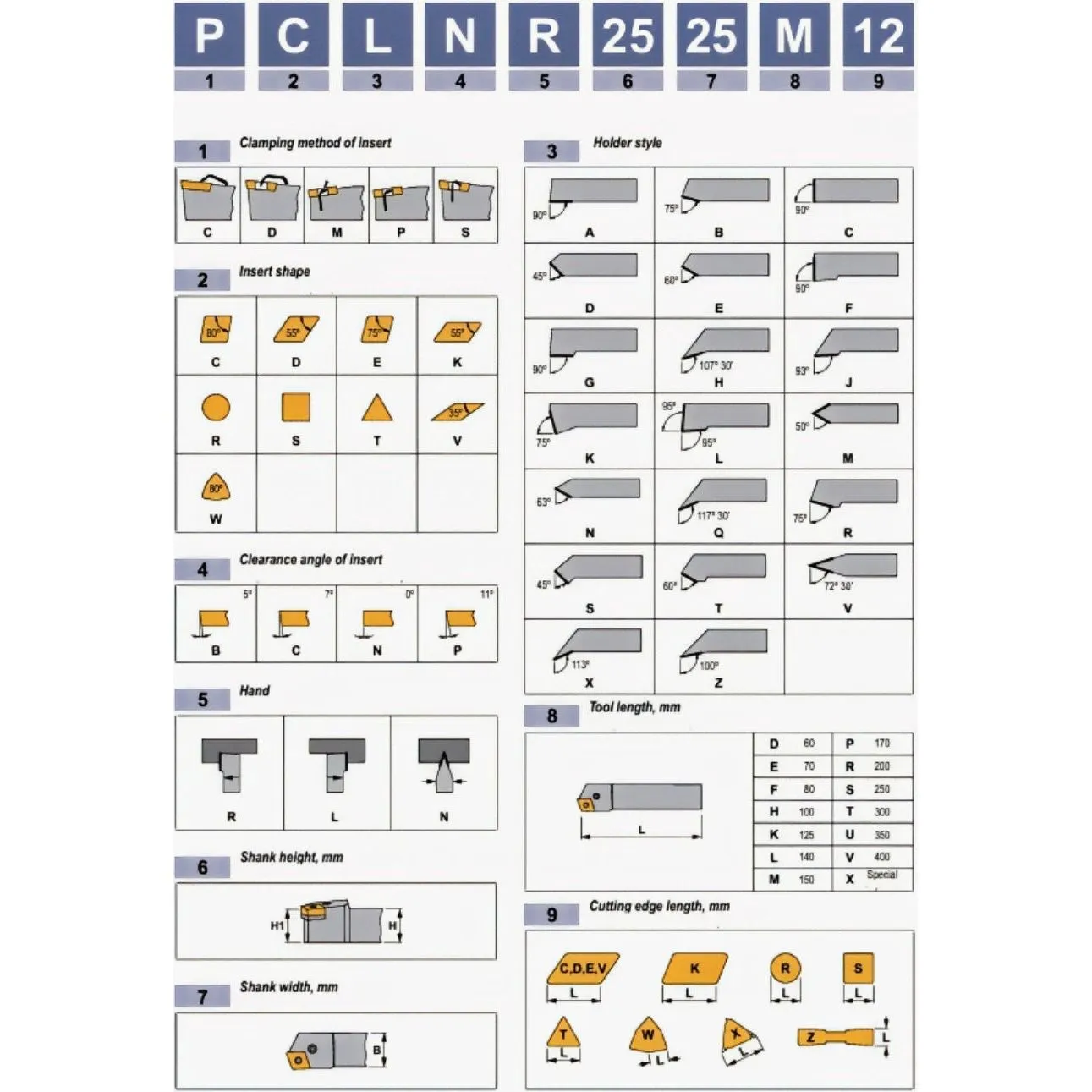

Using the chart within images, the relevant parts in the code are the 2nd and 4th letters. eg = MCLNR3225P12 would refer to a CN insert style.
To know what size the insert should be it refers to the last two digits in the code - MCLNR3225P12 meaning a CN-12 insert. The result being any insert starting with a CN will fit on the respective holder.
