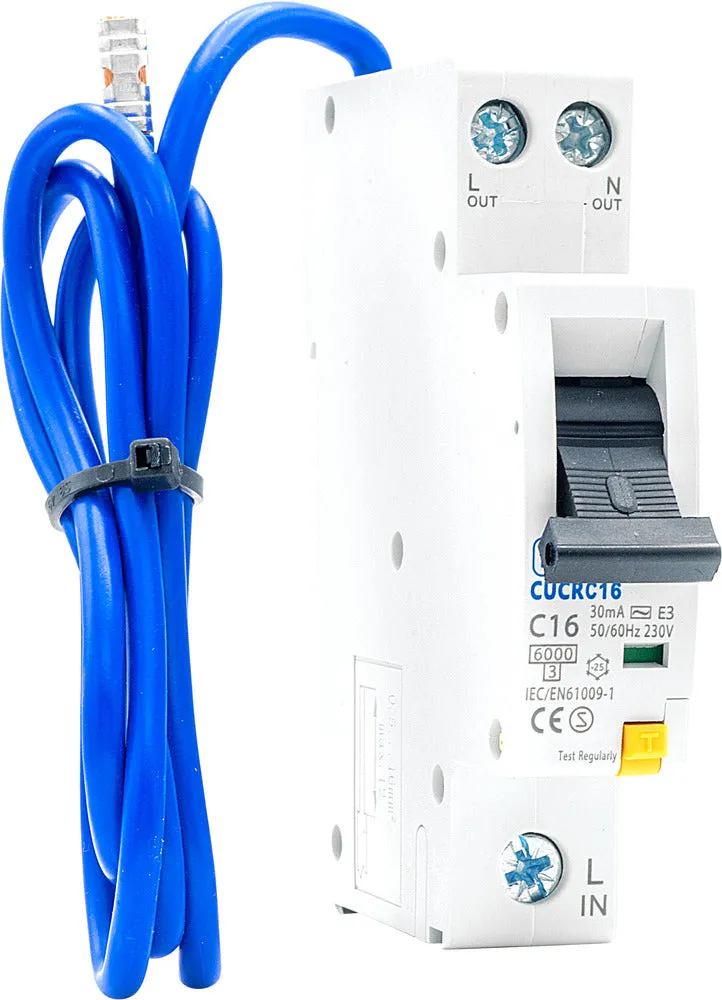

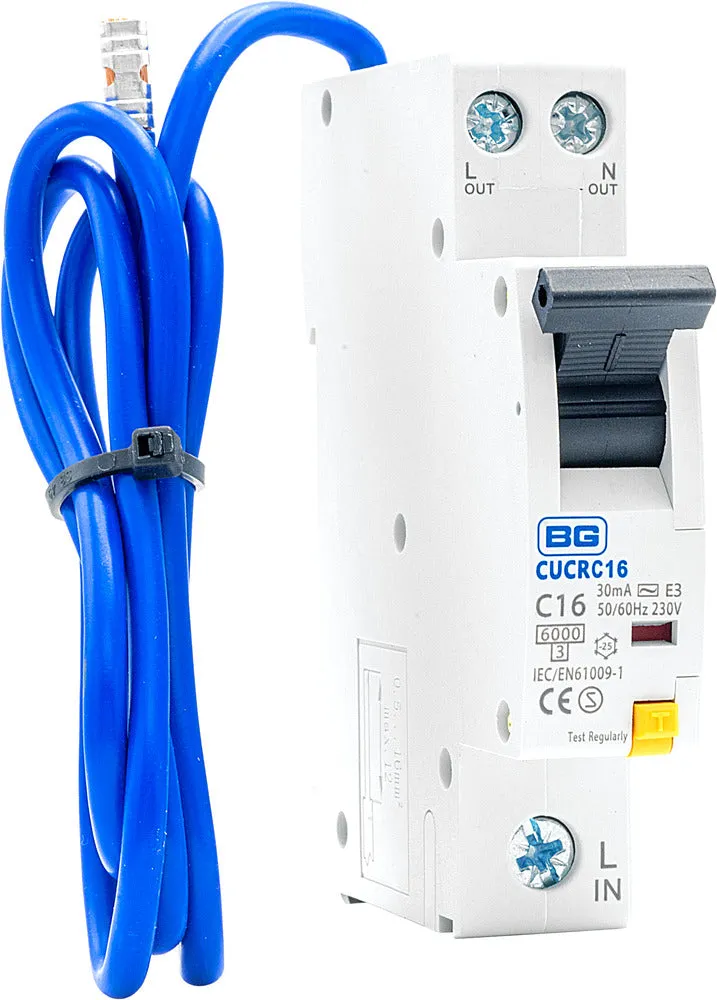

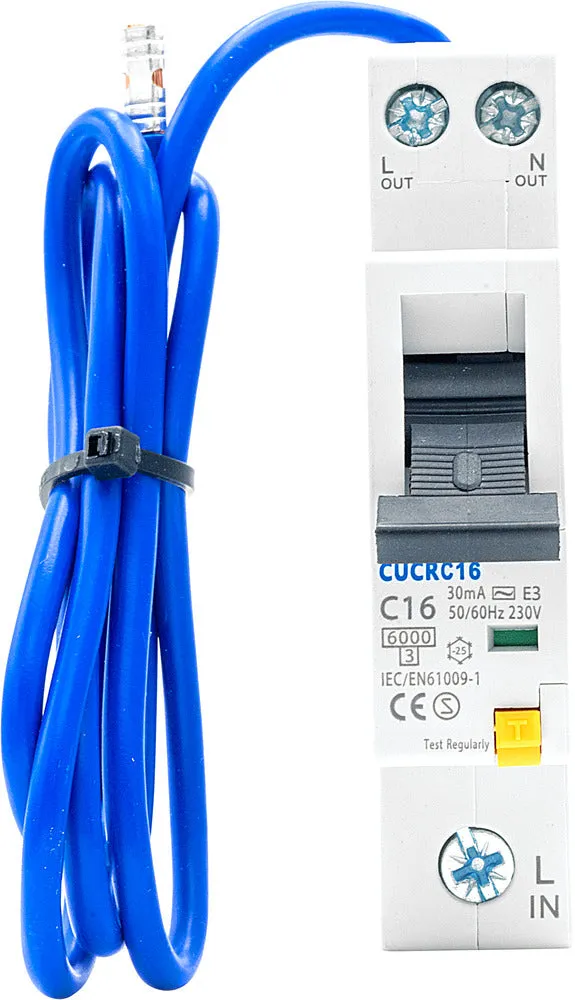

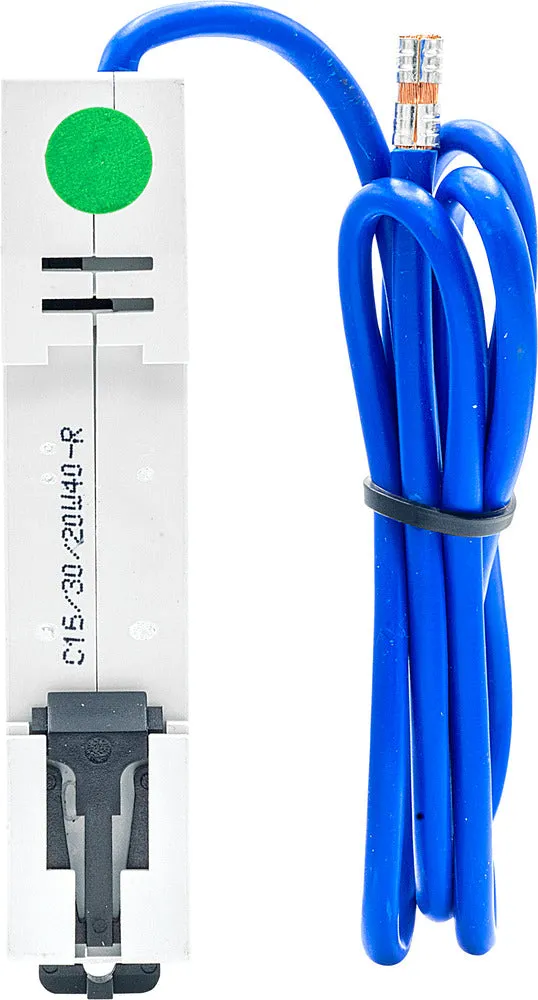

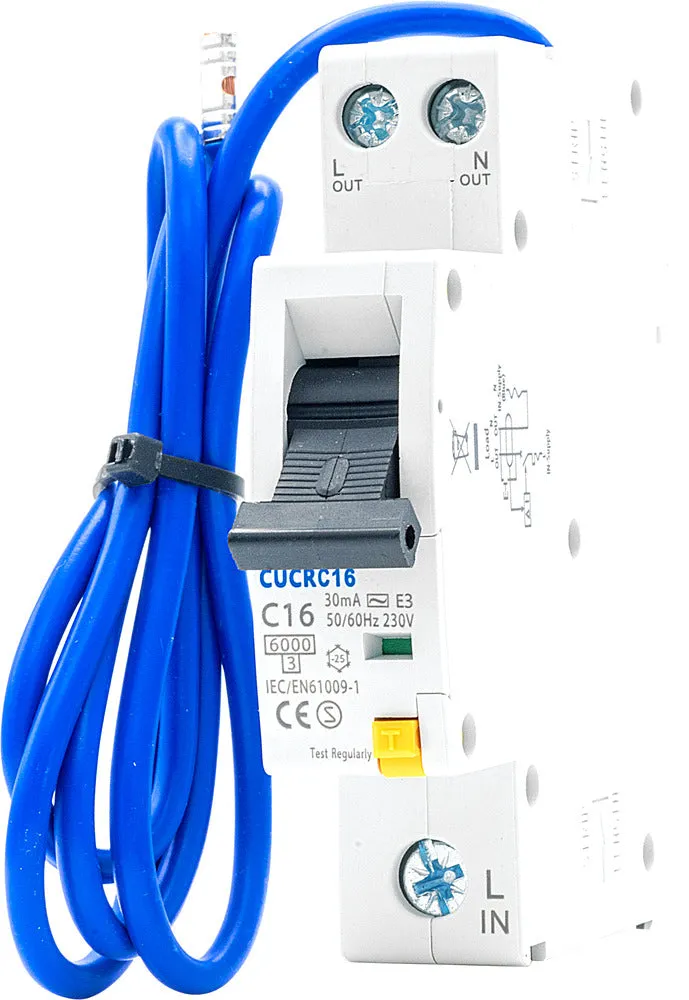

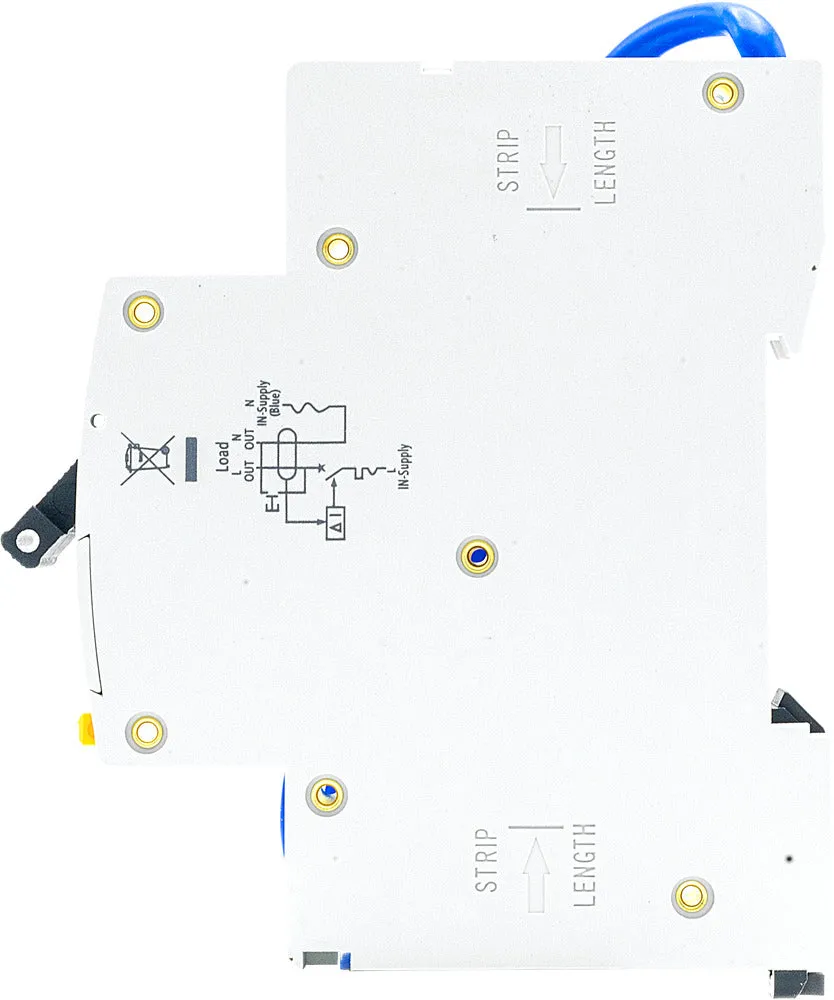

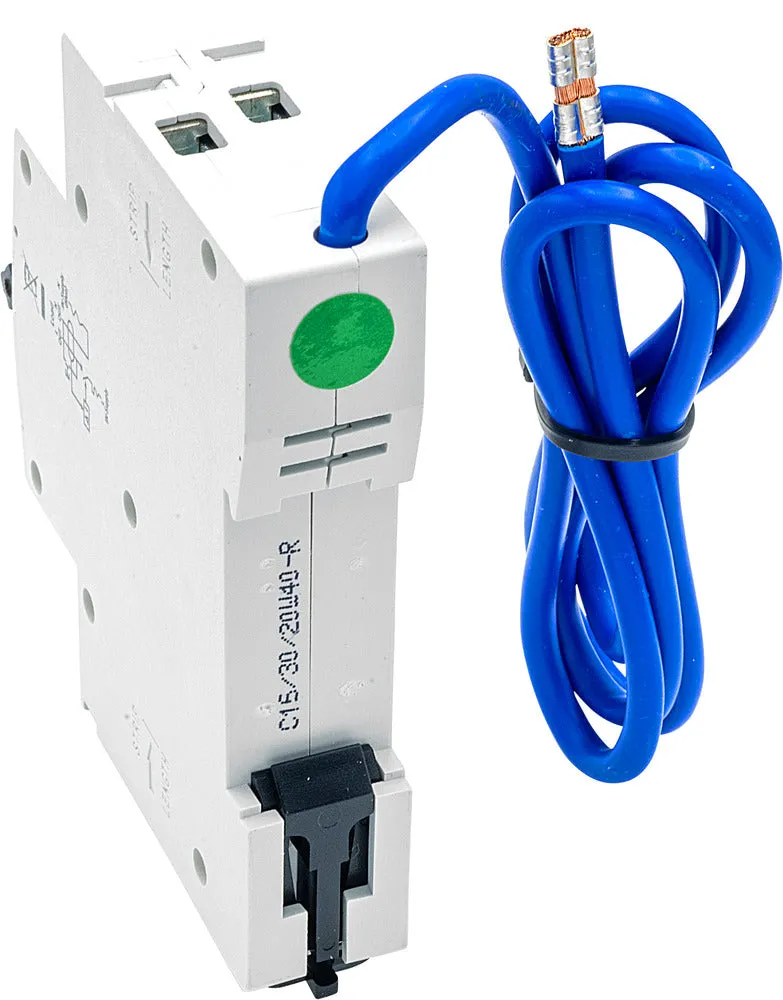

BG 16A SP 1 Module C Curve 6kA 30mA Type AC Compact RCBO
- Lockable cover option available
- Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
- Spirit level, to enable quick installation
- Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time
This Residual Current Circuit Breaker with Overload Protection provides superior protection for both people and circuits in a single module. The compact design clips onto standard 35mm DIN rail but the shorter body makes it easier to install in consumer units alongside other devices such as MCBs and RCDs, saving space and making wiring easier.
The BG compact RCBO suitable from 6A to 32A in both B and C curve with a 30mA trip sensitivity.
Device capable of being locked on or off positions using a device lock.
This item is 16A Single Pole, Breaking Capacity 6kA
Features
- Compact size RCBO allowing for maximum usage of cable space within the consumer unit and easy installation
- Positive contact indication status
- Device capable of being locked in the 'ON' or 'OFF' position
- Manufactured and tested to EN/IEC 61009-1 standards
- 6kA breaking capacity
- Type AC, C Curve
- 16A
