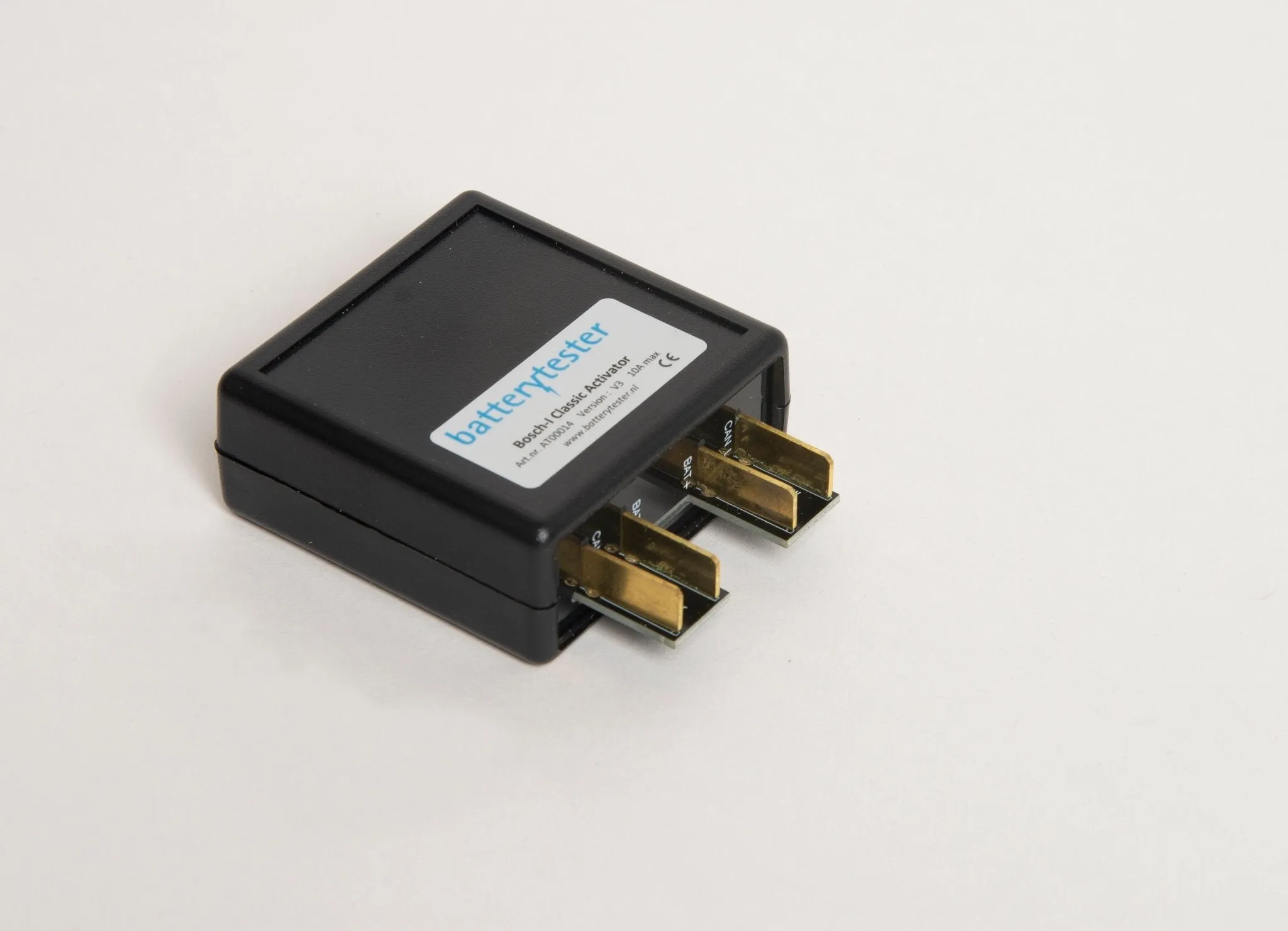

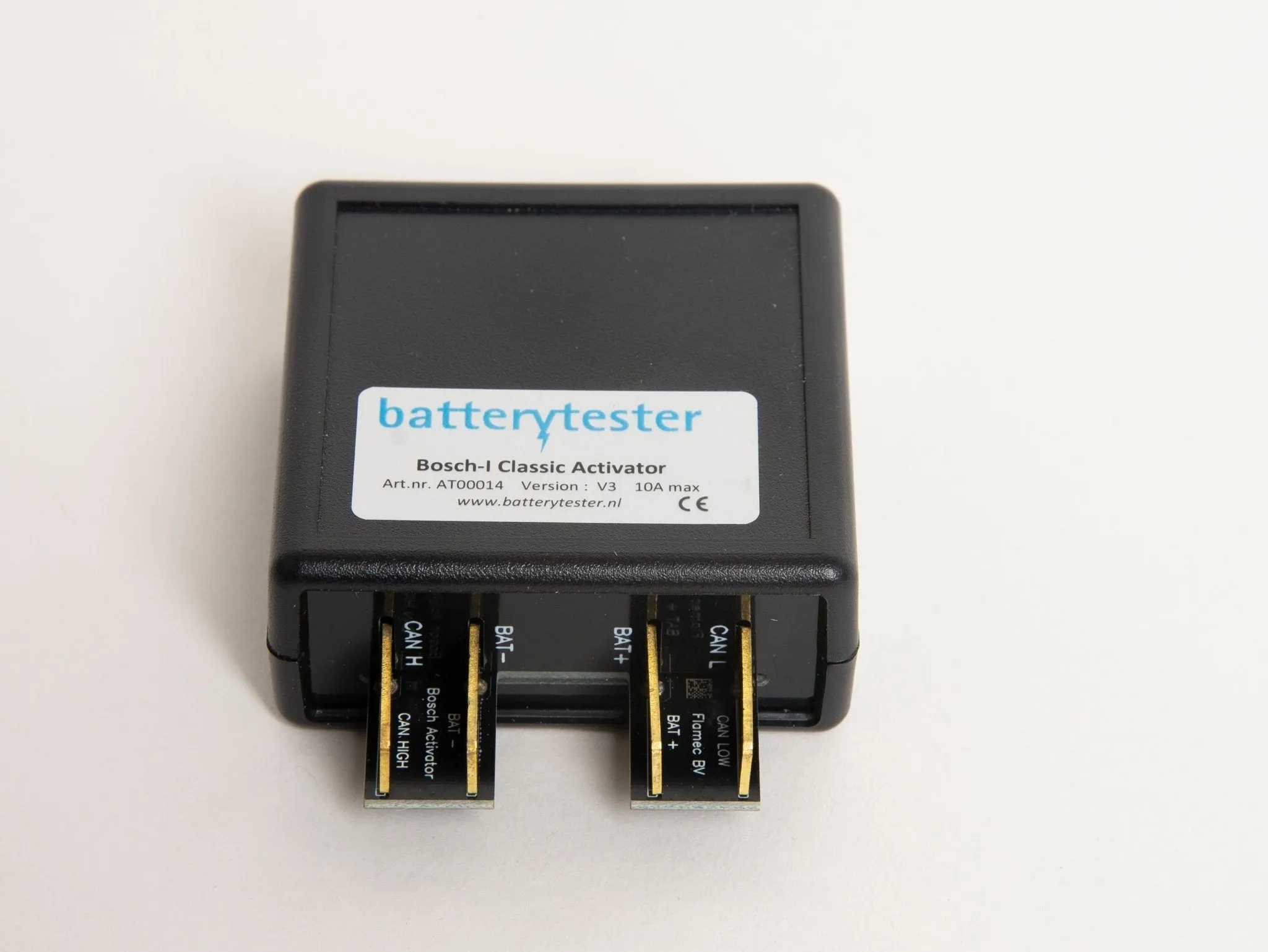

Adapter for testing 36V Bosch Classic batteries of 300Wh, 400Wh en 500Wh. The adapter ensures that the battery remains active and can be tested

Bosch Classic batteries are available on different e-bike brands: Sparta, Kreidler, Ghos, Koga, Batavus, Falter, Hercules, Merida, Bergamont, Cannondale, Centurion, Haibike, Flyer, Scott, Victoria, Trek etc.
Models 2010 - 2013 and Classic models 2014. Placement battery both carrier and frame.
An adapter cable AT00038 is needed! This is included into the delivery of a Batterytester. The adapter cable can be ordered separately as well.

Instruction:
1. Connect the adapter with the adapter cable AT00038 to the Batterytester.
2. Slide the adapter into the battery.
3. Press the button on the battery to switch it on.
4. Start the battery tester and follow the instructions.

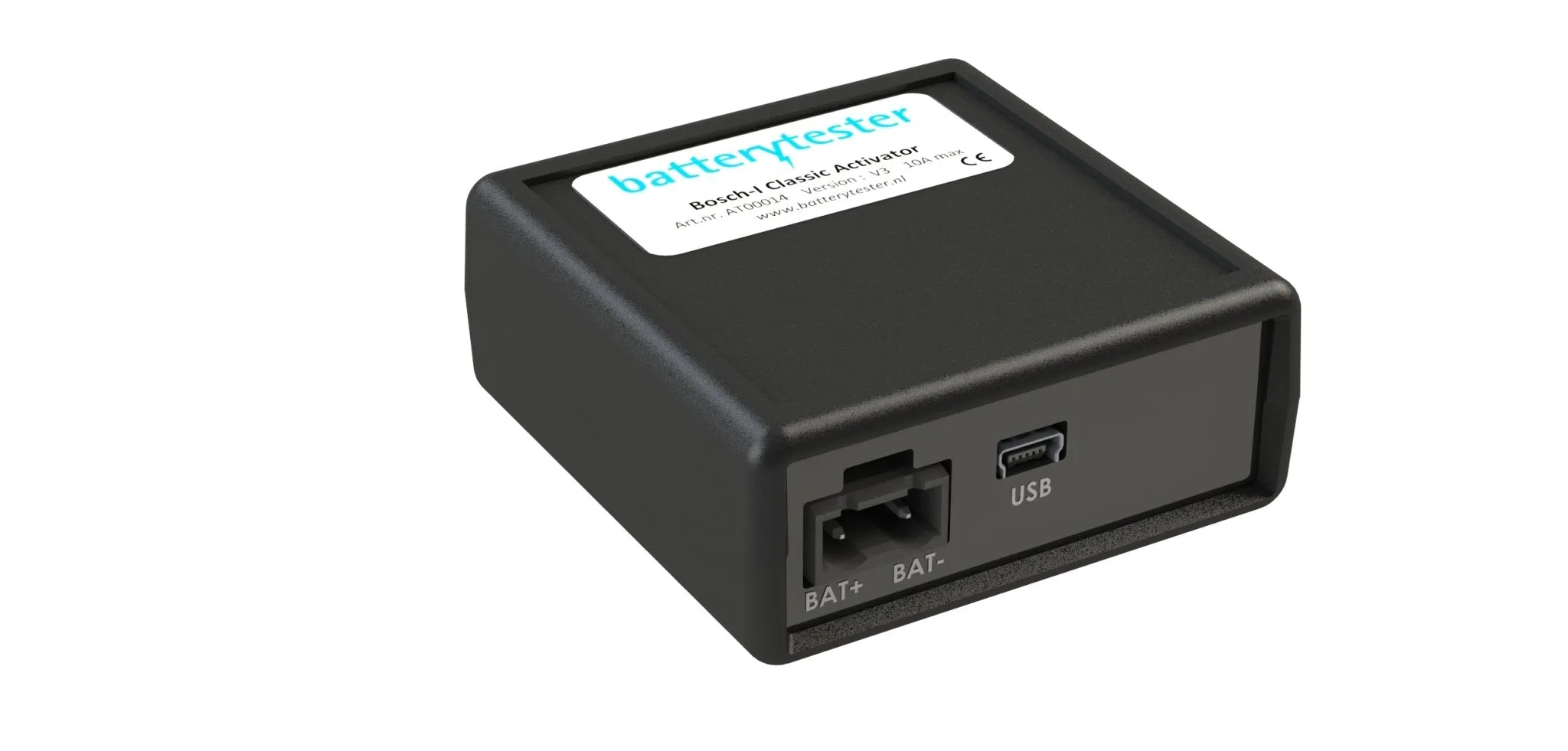

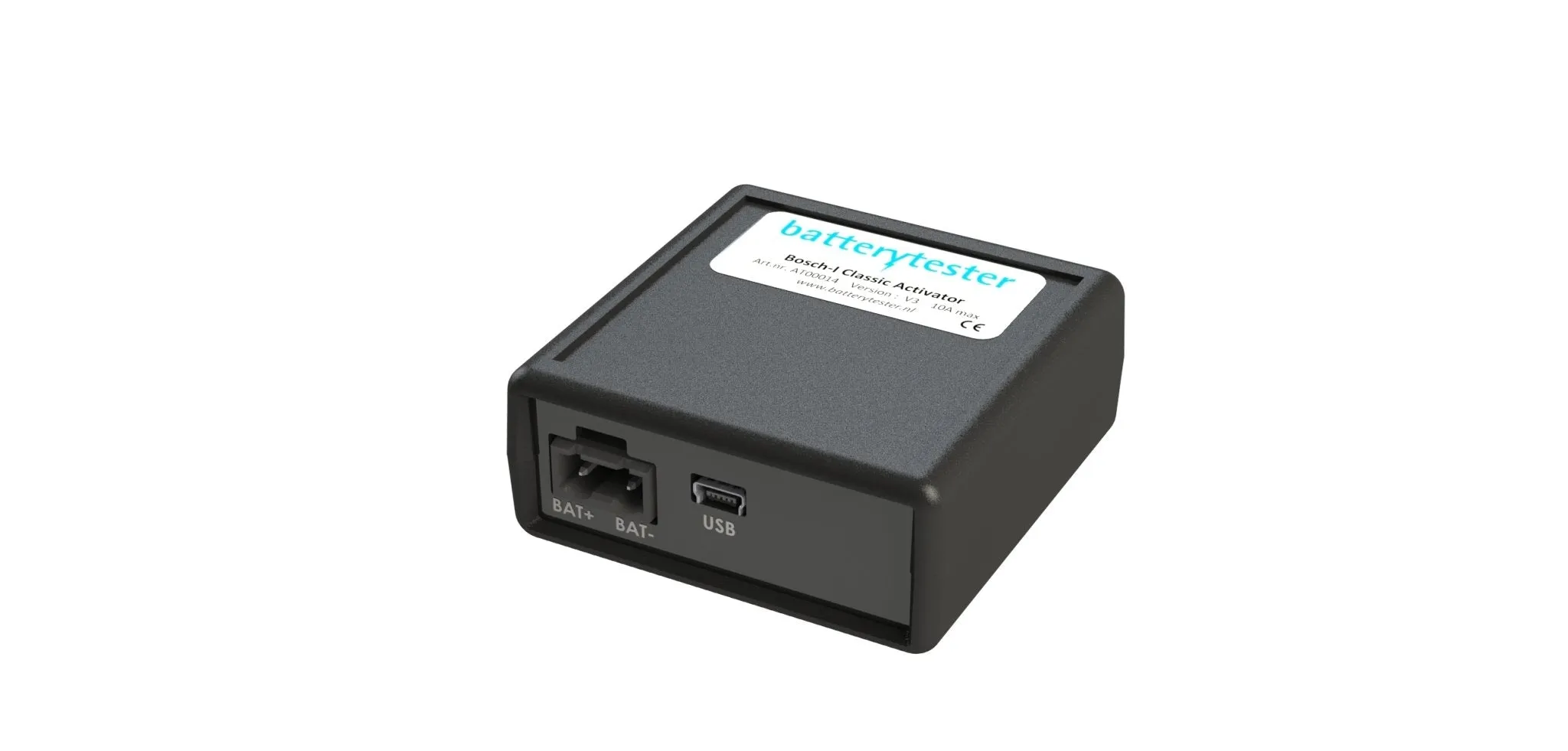

Note: The USB connection on the adapter is intended for a possible firmware update of the adapter. DO NOT connect this! Incorrect use may result in damage!
