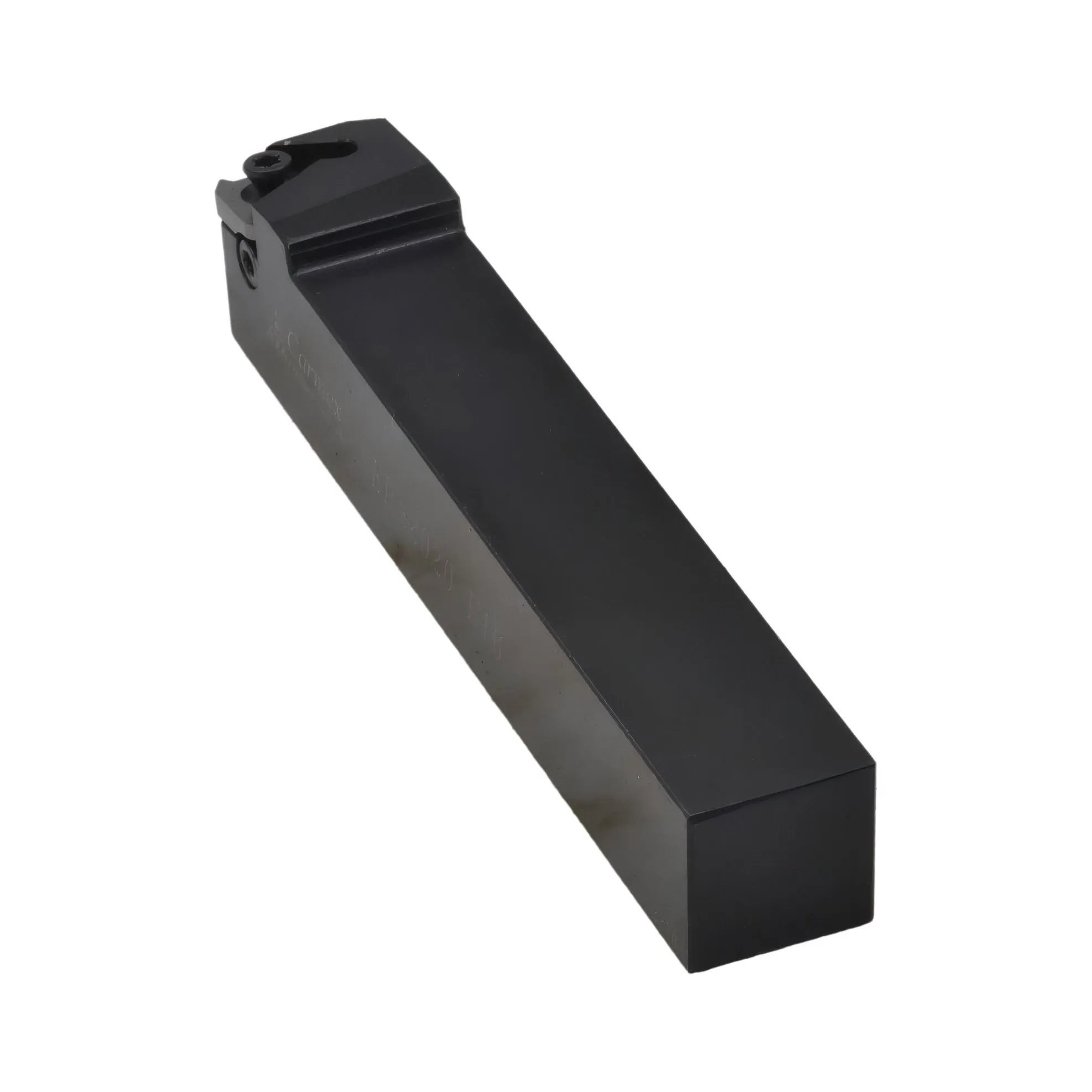

External Thread Turning Tool Holder 2020
We are your local authorised distributor for the complete range of Carmex Precision Tools. Carmex specialises in the manufacturing of threading tools for turning and milling. We offer a large selection of Carmex Products including thread turning inserts and toolholders, mill thread inserts and tool holders, mill-thread solid carbide and spiral mill thread.
| Quality | Designation |
|---|---|
| Measurement System | Metric |
| Clamping method of insert | Screw |
| Category | External Thread Turning |
| Connection Style | Square Shank |
| Back End Size | 20x20 |
| Hand | Right |
| Coolant | No |
| Insert Code | ER |

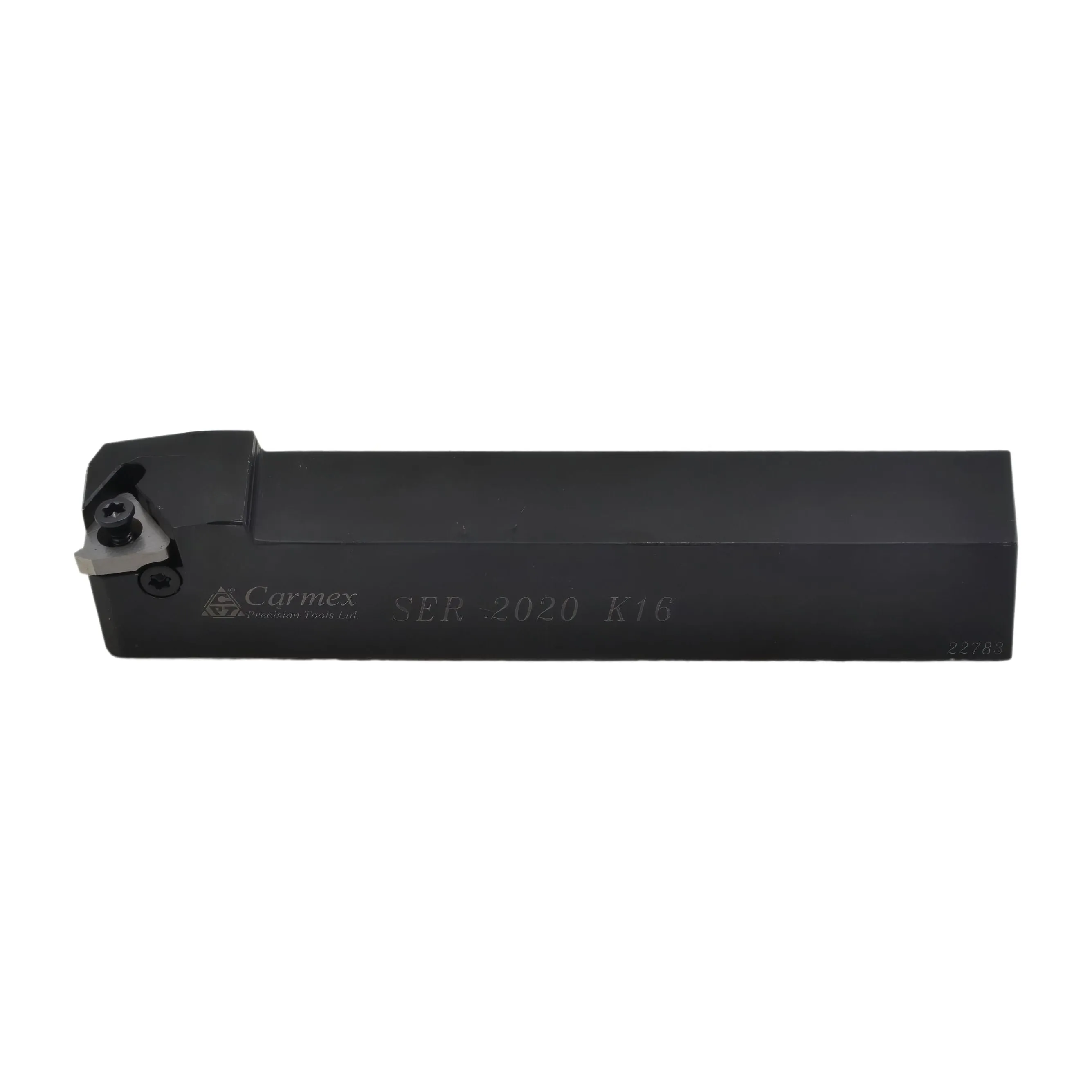

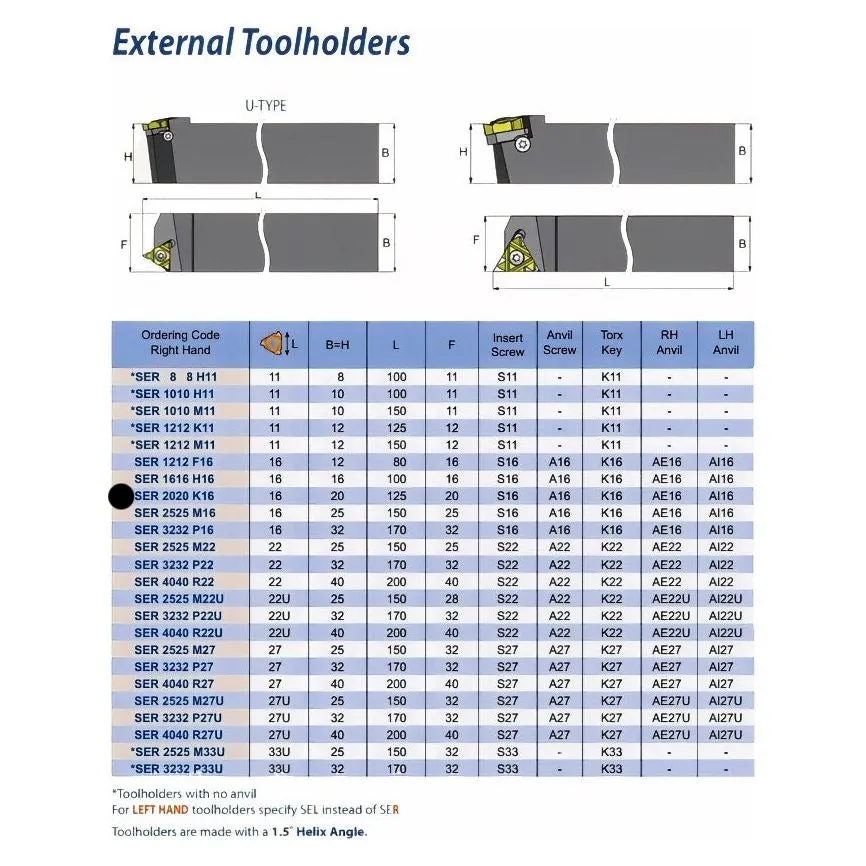

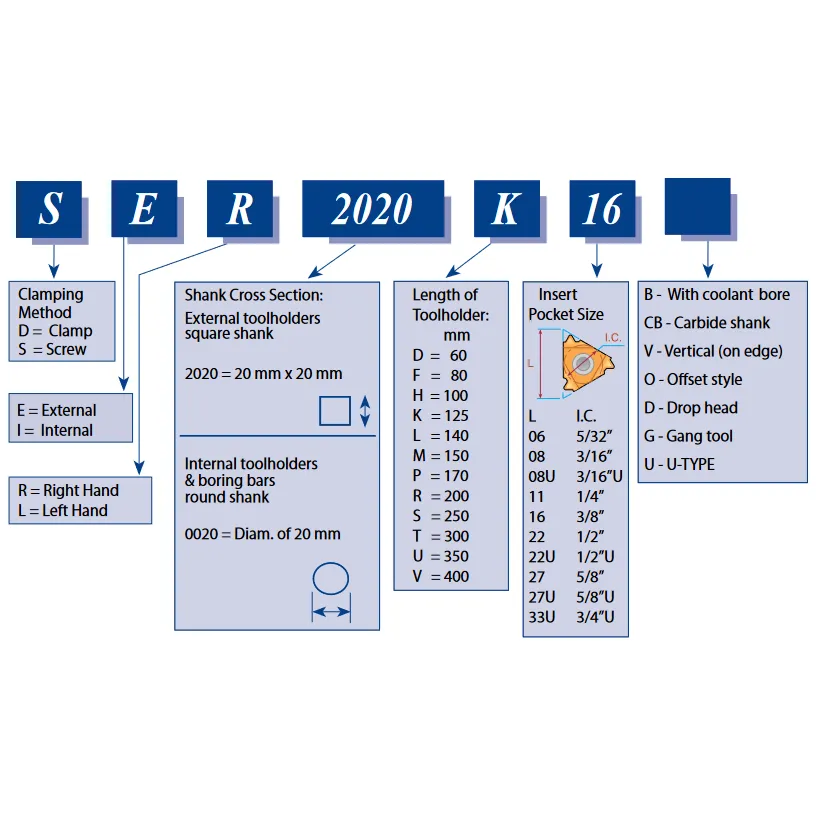

Using the chart within images, the relevant parts in the code are the 2nd and 3rd letters. eg = SER 2020 K16 would refer to a ER insert style.

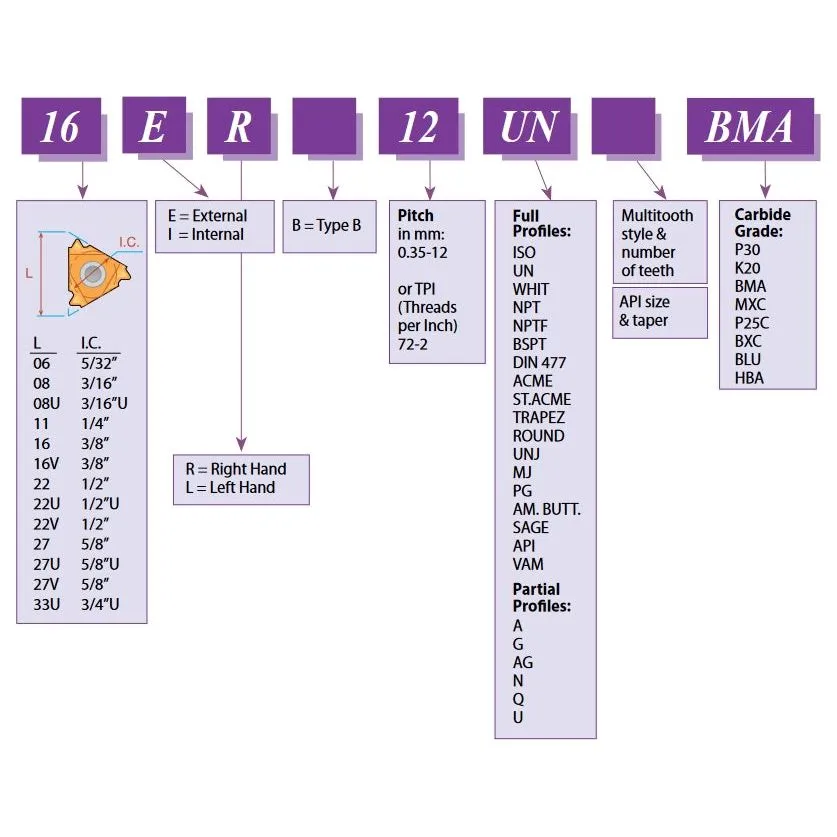

To know what size the insert should be it refers to the last two digits in the code - SER 2020 K16 meaning a 16ER insert. The result being any insert starting with a 16ER will fit on the respective holder.
