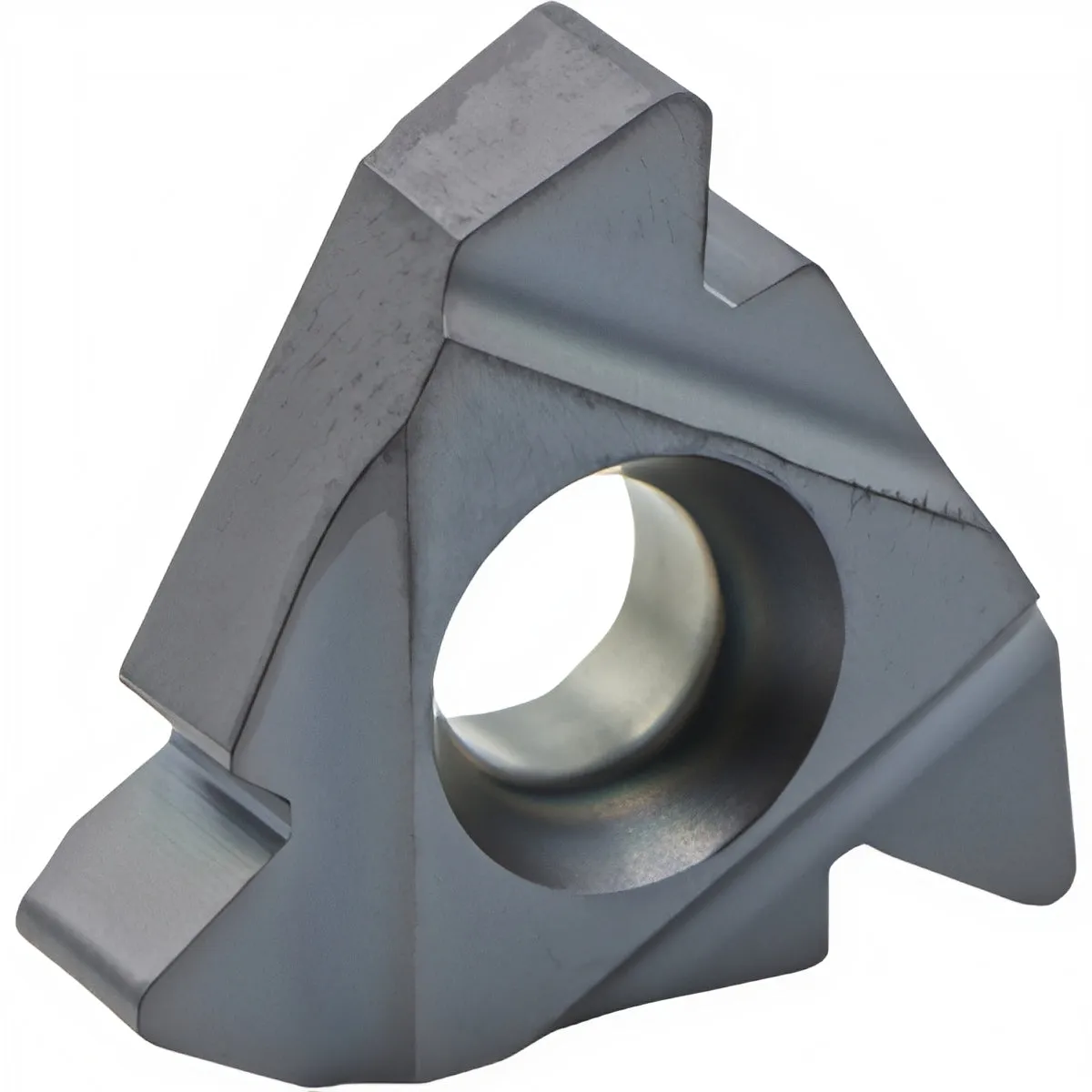

Internal Thread Turning Insert

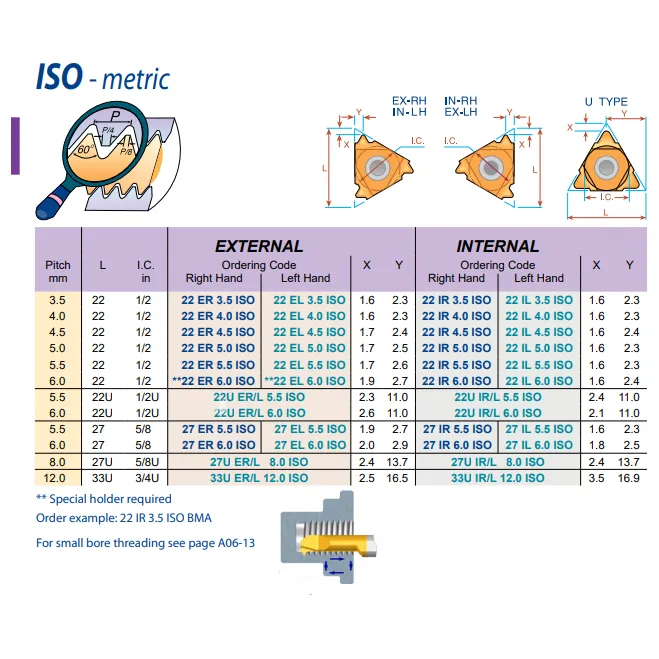

Carmex ISO inserts are designed to cut thread pitch sizes from 0.5 to 12.0 mm. Tools have geometry to cut standard 60° ISO thread profiles.
| Quality | Designation |
|---|---|
| Insert Style | 22IR |
| Insert Size Code | 22 |
| Pitch (mm) | 5 |
| Insert Material | Carbide |

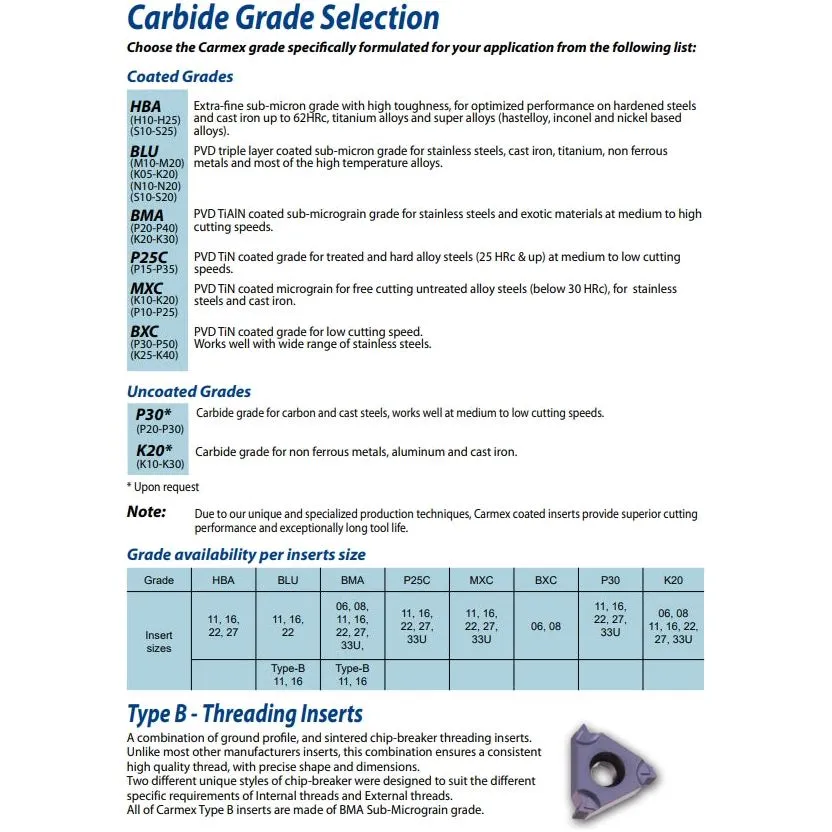

| Grade | BMA |

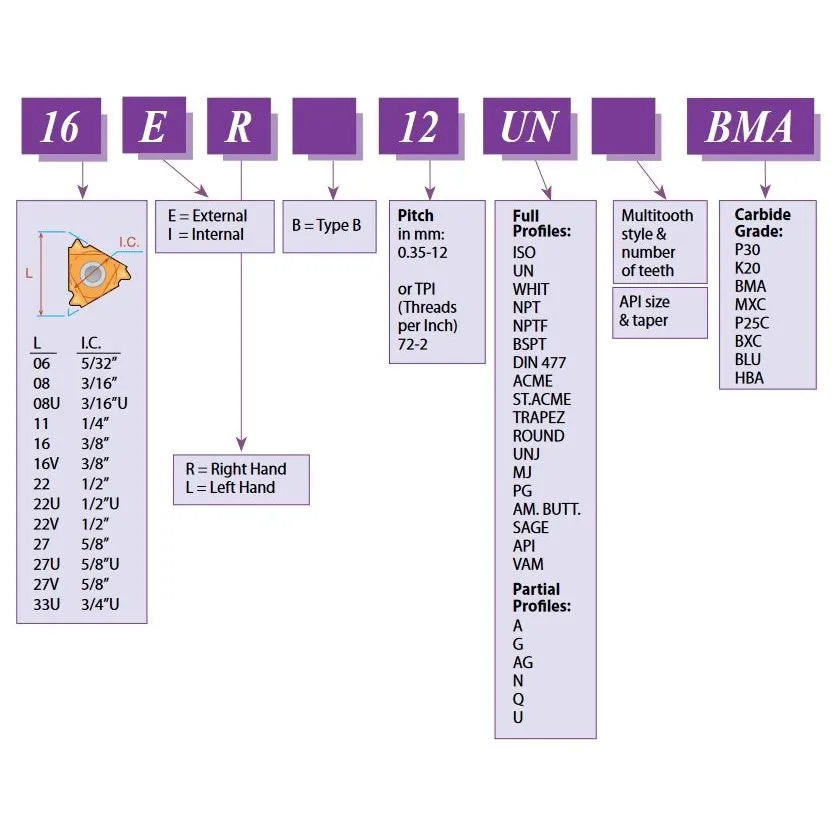

| Order Code | 22 IR 5.0 ISO BMA |
| Hand | Right |
| Inscribed Circle (Inch) | 1/2" |
| Full Form | Yes |
| Thread Type | Internal |
| Thread Standard | ISO |
| Included Angle | 60° |
| Primary Workpiece Material Code | P,M,K,S,H |
| Number of Teeth Per Side | 1 |
| Coating/Finish | TiAIN |
We are your local authorised distributor for the complete range of Carmex Precision Tools. Carmex specialises in the manufacturing of threading tools for turning and milling. We offer a large selection of Carmex Products including thread turning inserts and toolholders, mill thread inserts and tool holders, mill-thread solid carbide and spiral mill thread.
