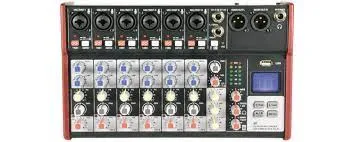

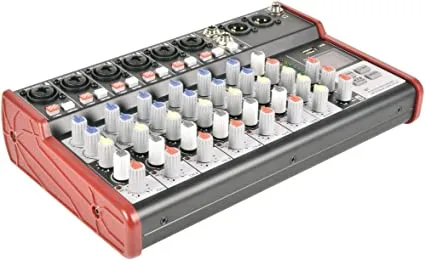

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and 48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with the backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smartphone via BT wireless link. The output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high-quality studio or live performances.

Integral USB multi-format audio player
BT wireless connectivity
Digital delay effect for vocals or instruments
Individually switchable 48V phantom power
Built-in record function
Supplied with DC power adaptor

Specifications
Power supply 5Vdc 1A (adaptor included)
Power consumption max. 5W
Gain -14 to 40dB
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power 48V individually switchable (XLR inputs only)
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Audio source Internal USB player/recorder & BT receiver
Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version 2.1 EDR
Frequency response 20Hz - 20kHz (±0.5B)
THD N <0.03% @ 1kHz
Dynamic range 102dB
Crosstalk : stereo 92dB

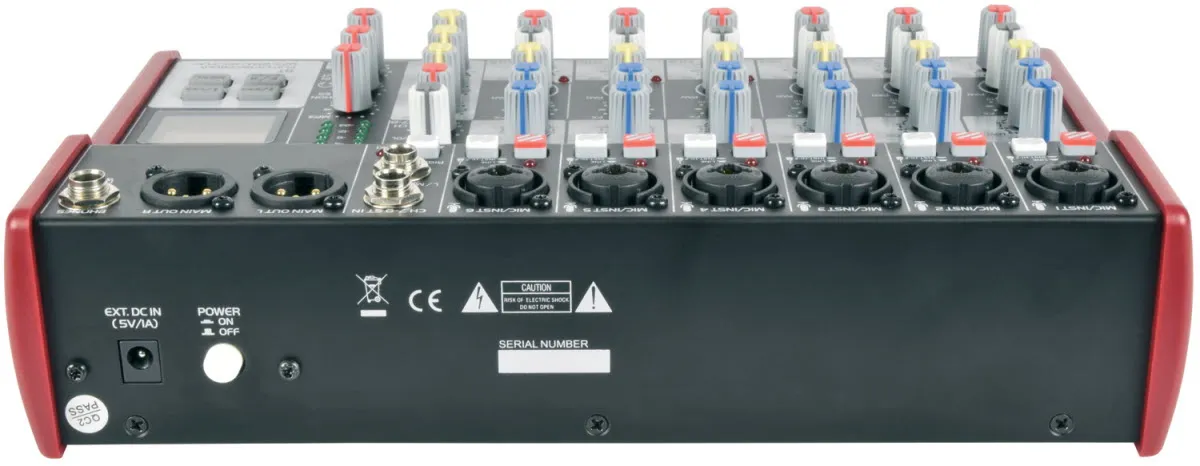

Output Left Right balanced XLR
Output impedance 120 Ohms
Max. output level 3Vrms

Dimensions
274 x 165 x 66mm

Weight
1.45kg
