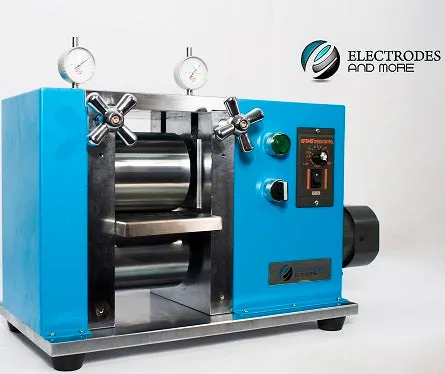

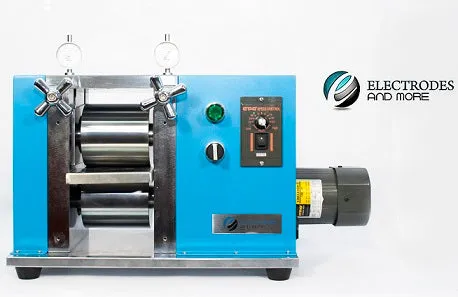

EQ-DTHCM-110 is a horizontal electrode calendaring machine also called electrode pressing machine. It is also referred as rolling press. The press thickness can be adjusted using two micro meters. The speed which the calending is done can also be changed. This desktop comapct machine is desgined for small samples in the laboratory environment for research and development purpose. It has two heavy steel rollers with 100 mm diameter and a width of 100 mm.

 Specifications

• Input votlage: 110 V
• Single Phase
• Power 550W total
• Heavy duty steel construction
• Two analog thickness meters
• Steel Rollers diameter 100 mm
• 0.5 HP high torque gear motor

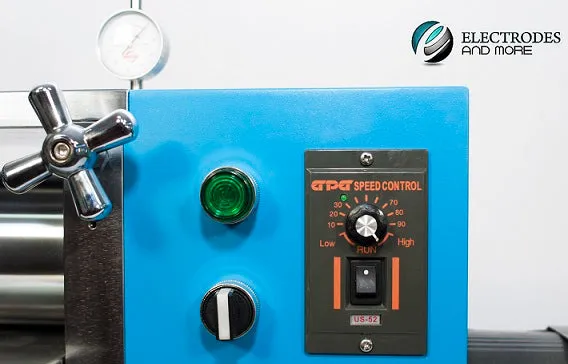

• Variable speed
• Weight 90 lbs
• Optional 220 V unit available
• Optional digital micro meter available
