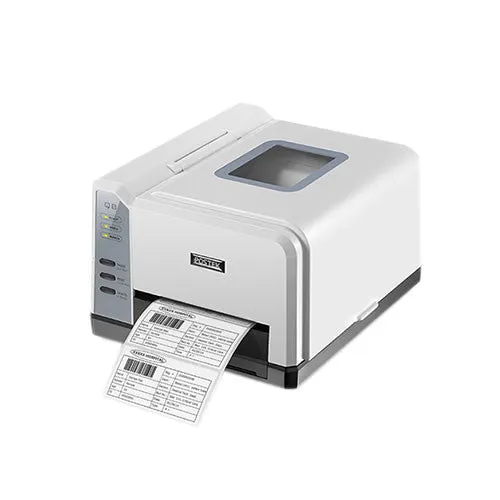

The compact, cozy design makes the Q8 printer the best choice for those space limited applications. The unique mechanism guarantees highly reliable performance with reduced noise. The open structure design enables Q8 users to easily replace consumables.
BENEFITS
A prime example of compact structure design, Q8 owns the most extraordinary stability, and brings you the quietest printing experience.
Cover opened from the side, like an angel’s wing. The compact model is simply designed and cute in its appearance.
The operational zone is completely opened, which allows extra space, and makes operations easier and faster.
National patented “Convective Heat Transfer” technology, effectively cools down the working temperature of the printer, especially when printing continuously.
One-piece chassis, strengthened in every side. High quality and reliable.
Q8 has multiple mounting positions for the media sensor, which can be adjusted according to different sizes of media.
3 buttons 3 indicators, each is responsible for a specific function/status, easy to understand and use.
Specification
Model Q8 300
Printing Method Thermal Transfer
Printing Resolution 300 dpi
Max Printing Speed 3 ips (76.2 mm/s
Max Printing Width 4.17″(106 mm)
Max Printing Length 79″(2000 mm)
Memory Roll-feed, die-cut, continuous, tags, tickets in plain paper or thermal paper
Media
Width: 4.72” (120 mm) max., 0.98″(25 mm) min.
Supply roll: OD 4.49″(114 mm) max., ID 1″(25.4 mm) min.
Thickness: 0.003″~ 0.006″(0.08 ~ 0.15 mm), including liner
Ribbon Wax, Wax/Resin, Resin
Ribbon roll: OD: max. 1.5″(38 mm), ID: 0.5″(12.7 mm)
Max width: 4.3″(110 mm); Max length: 360’ (110 M)
Media Sensor Reflective (multiple mounting positions) / Transmissive (Adjustable)
Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces USB DEVICE 2.0, RS-232 Serial
Power Rating 24 VDC Power adapter
Weight 2.1 kgs
Dimensions W 8.3″(210 mm) x D 10″(255 mm) x H 5.9″(150 mm)
Operating Environment Temperature: 32°F ~ 104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ 140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
Accessories Standard Item: External Media Stand;
Optional Items: External Label Rewinder, Guillotine Cutter, Media Guide Adaptor
