Name: Redfoot Hydraulic Fiat Motorhome Levelling System
SKU: 741514

12VDC Powered Hydraulic Auto Smart levelling system

This kit is for Motorhomes made on a Mercedes Sprinter Chassis

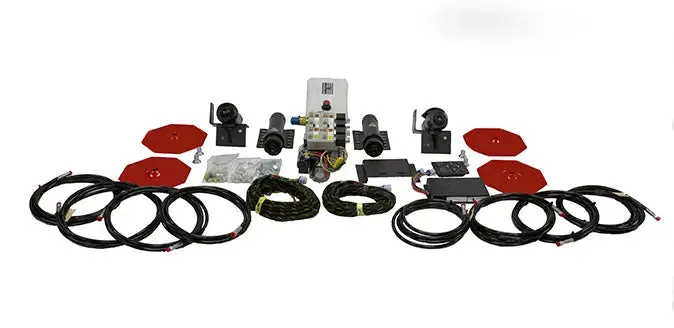

Kit Includes:

2 x 13", 2 x 2 stage Telescopic stroke 2" bore cylinders (High Kit)
or
4 x 2 stage Telescopic stroke 2" bore cylinders (Low Kit)

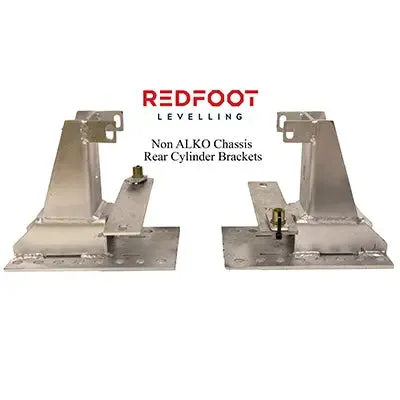

Custom front and rear bolt on mounting bracket
Custom hose kit
Harness
Bolt kit
Feet

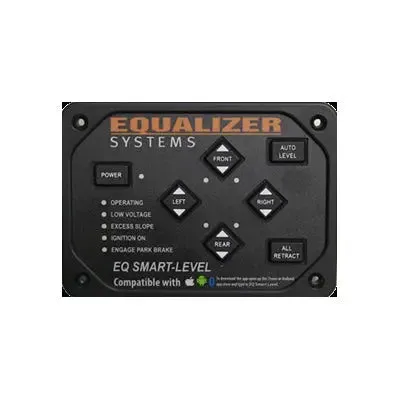

Smart Controller

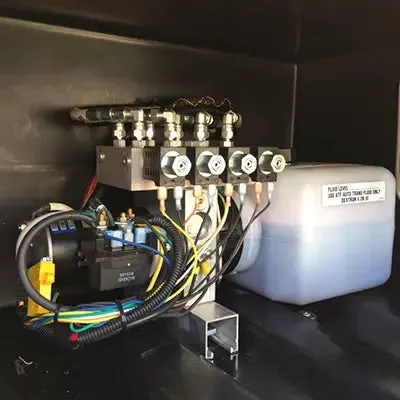

12v Hydraulic Pump
Built in Blue Tooth Smart Levelling.

Maximum lifting capacity 16 ton.

Fiat Ducato Motorhomes in Australia can come in many different configurations. When selecting a levelling system for your Fiat Ducato Motorhome it is important to know what chassis type you have.

Fiat Ducato Motorhomes are imported either with a Fiat ‘CCS Cab’ chassis or an ‘AL-KO’ attached chassis. That is the first difference to understand. The second difference is the location of the rear axle in the chassis. The rear axle position is either UNDER the chassis, or THROUGH the chassis.

An axle position UNDER the Chassis means the rear axle sits under the chassis rail leading to an increased height from the ground to the bottom of the chassis rail. This vehicle is considered ‘HIGH’ and Redfoot Levelling are able to use a single stage 13″ Hydraulic Cylinder on the rear of the vehicle that is less expensive.

An axle position THROUGH the chassis (where the rear axle actually protrudes through the chassis) reduces the height from the ground to the bottom of the chassis rail, making the vehicle to sit lower to the ground. This vehicle is considered ‘LOW’ and Redfoot Levelling use a pair of two stage ‘Telescopic” hydraulic cylinders on the rear. It is a great solution but are more expensive.

All Fiat Ducato chassis use a pair two stage Telescopic hydraulic cylinders on the front. It is only the rear where the types of cylinders will vary.

Choosing the custom Redfoot Fiat Ducato Smart Levelling system is as easy as 1,2,3,4.

Step 1. Determine RV Manufacturer and model of the Fiat. E.g. Jayco Conquest

Step 2. Determine the Vehicle Make and Chassis Model. E.g. FIAT Ducato X250 – AL-KO chassis (Check your compliance plate if unsure)

Step 3. Confirm and measure the underfloor to ground clearance behind the rear axle as shown in the diagram below. If your measurement is above 630 mm it will qualify as ‘HIGH’. If below this minimal measurement of 630 mm then it will qualify as ‘LOW’.

Step 4. Now compile your results from steps 1, 2 and 3 and select the appropriate Redfoot System based on the option selections above.

E.g. Jayco Conquest ALKO High or Jayco Conquest CCS Cab High or Jayco Conquest ALKO Low or Jayco Conquest CCS Cab Low.

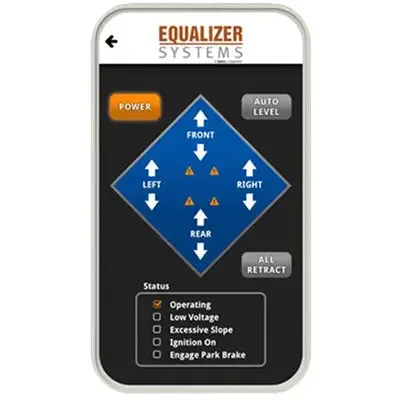

The Redfoot Fiat Smart Levelling Systems are compatible with both iPhone and Android smart phones System.

This is the industry’s new standard and it has changed the way levelling is done. Redfoot Smart Level allows you to level your Fiat motorhome with your smart phone by using built in Bluetooth capability. The automatic, one touch operation levels your motorhome in less than two minutes.

This sequential levelling is a patented process that provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while levelling it as low to the ground as possible. It is quick, easy and on the level!
