Introducing SSS Premium® CTS pots.

Our custom spec pots designed in conjunction with CTS offer a superior audio quality to standard CTS pots on the market and were designed with a unique audio taper specifically for guitar and bass players offering greater control and accuracy. Each pot is hand measured to ensure the tolerances are within our stated 8%.

Custom Audio Taper

Manufactured with a lovely, smooth torque - not too loose, or too stiff, SSS Premium® CTS pots have no choking, drop offs or sudden surges when dialling the controls up or down. Accurate vintage taper - still nice and reactive for volume swells but a slightly wider range and more usable volume sweep.

Specs:

• Custom audio taper
• 8% resistance tolerance
• Anti-static lubricant for a reliable, glitch-free operation
• Tin plated easy solder casing
• Traditional flat back cover
• Solid brass shaft and bushing for longer life
• Bakelite terminal board
• 3/8'' x 32 thread

Back stamping: SSSP CTS 500K

Side stamping: Part number date

Sold individually - (long shaft and solid shaft variations come with 2 nuts for height adjustment)

Dimensions:

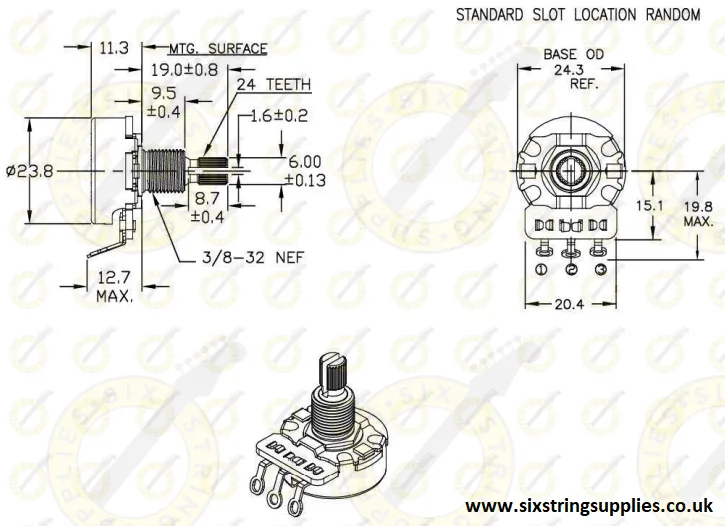

Short Shaft (suitable for Epiphone Les Pauls, imported models and flat top bodied guitars)

• Shaft diameter: 5.95mm fine knurling 24 spline
• Threaded bushing height: 9.52mm (3/8'')
• Required mounting hole: 9.52mm (3/8'')

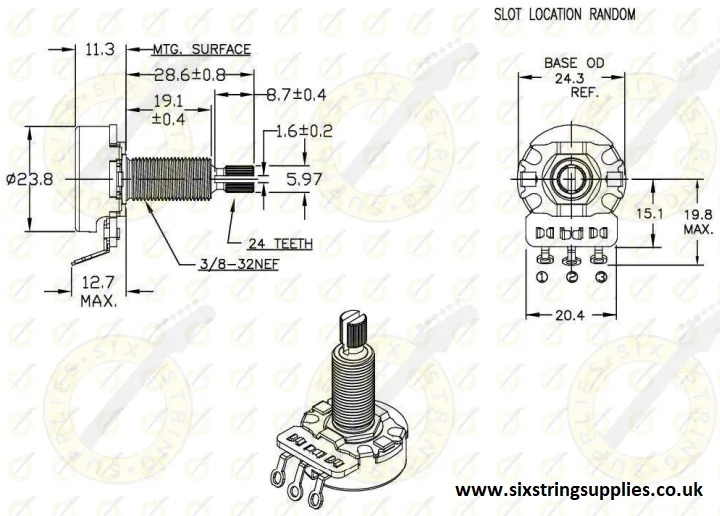

Long Shaft (suitable for Gibson models and thick topped guitars)

• Shaft diameter: 5.95mm fine knurling 24 spline
• Threaded bushing height: 19.05mm
• Required Mounting Hole: 9.52mm (3/8'')
• Supplied with 2 nuts for height adjustment

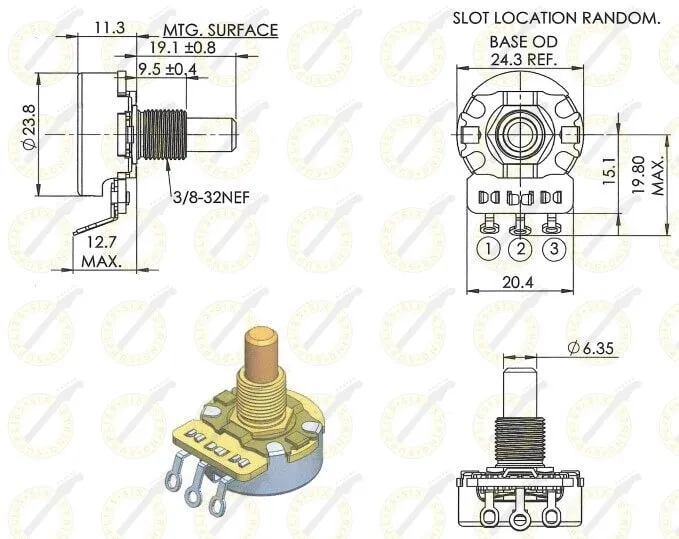

Solid Shaft (HS Telecaster, Telecaster Deluxe)

• Shaft diameter: 6.35mm (1/4'') solid shaft
• Threaded bushing height: 9.52mm (3/8'')
• Required mounting hole: 9.52mm (3/8'')
• 500k solid shaft for humbucker equipped Telecasters etc...
• Supplied with 2 nuts for height adjustment

Short or Long Shaft?

Gibson Les Paul models (short shaft pots):

• Historic Reissue (R4/R5/R6/R7/R8/R9/R0)
• 1952 -1977 Standard's
• 1954 -1977 Custom's
• 1968 -1977 Deluxe's

Gibson Les Paul models (long shaft pots):

• Standard's
• Faded's
• Classic's
• Studio's
• Traditional's
• 50's & 60's Tributes
• 1977- current Custom's
• 1977- current Deluxe's

We also stock  for Strat®, Tele® and Bass.
