Ridgid 63818 Description

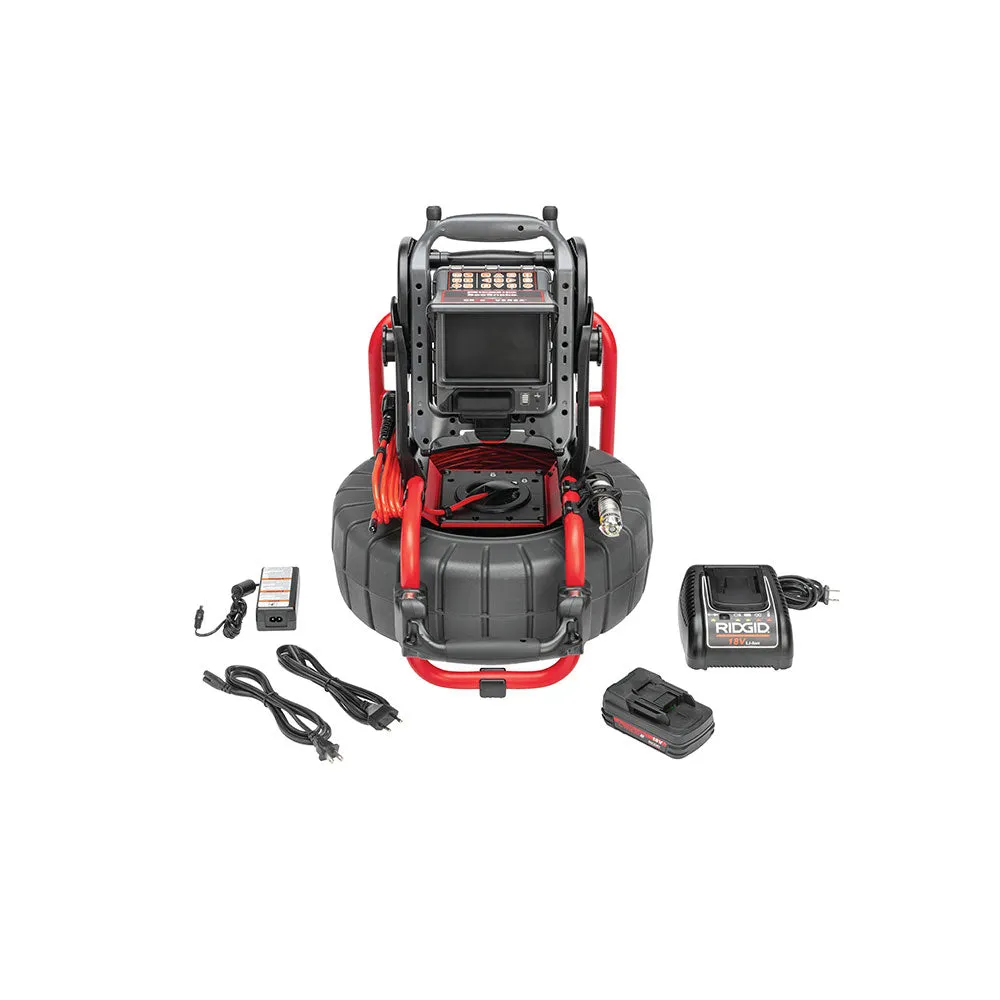

63818 RIDGID Compact M40 Kit w/ SeeSnake Monitor, Camera, 2 18V Batteries, & Charger. SeeSnake Compact M40 Camera System. The Compact M40 offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSense technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.
Ridgid 63818 Includes
- (1) 63673 SeeSnake Compact M40 | Reel, Compact M40 25mm SL TruSense
- (1) 64943 CS6x VERSA System
- (1) 2.0Ah Battery
- (1) 120V Charger
Ridgid 63818 Features
- Quick-release docking system for fast, efficient job setup with the SeeSnake CS6xPak monitor.
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
- Powerful FleXmitter¨ sonde has long range and preserves the camera's ability to make turns.
- High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
- TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.
Ridgid 63818 Specifications
| Display | Color LCD, 5.7" (145 mm) |
| Video | MPEG4 (H.264) 30 FPS |
| Autolog | MPEG4 (H.264) Space saving frame rate |
| PhotoTalk | MPEG4 (H.264) Single image with audio |
| Photo | JPG |
| Audio | Integrated microphone and speaker |
| Ingress Protection | IP×5 |
| Transfer Method | USB drive |
| Power Source | 18 V Li-ion rechargeable battery or AC adapter |
| Operating Temperature | 14°F – 122°F (-10°C – 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Push Cable Length | 131' (40 m) |
| Push Cable Diameter | 0.26" (6 mm) |
| Push Cable Core | 0.14" (3.5 mm) |
| Fiberglass Push Cable Bend Minimum Radius | 2.5" (63.5 mm) |
| Frequency | 512Hz |
